In industries including power transmission, engineering machinery, marine equipment and motor assemblies, rotating shafts serve as core power-transmission components. The machining quality of shaft keyways directly impacts assembly accuracy, operational stability and service life of the whole transmission system. Poor keyway tolerance, burrs or symmetry errors may result in shaft slipping, abnormal vibration and premature equipment failure, causing costly downtime for end-users.
Equipped with high-performance 4-axis vertical machining centers, we provide professional custom shaft keyway milling and comprehensive precision CNC machining solutions for global clients.

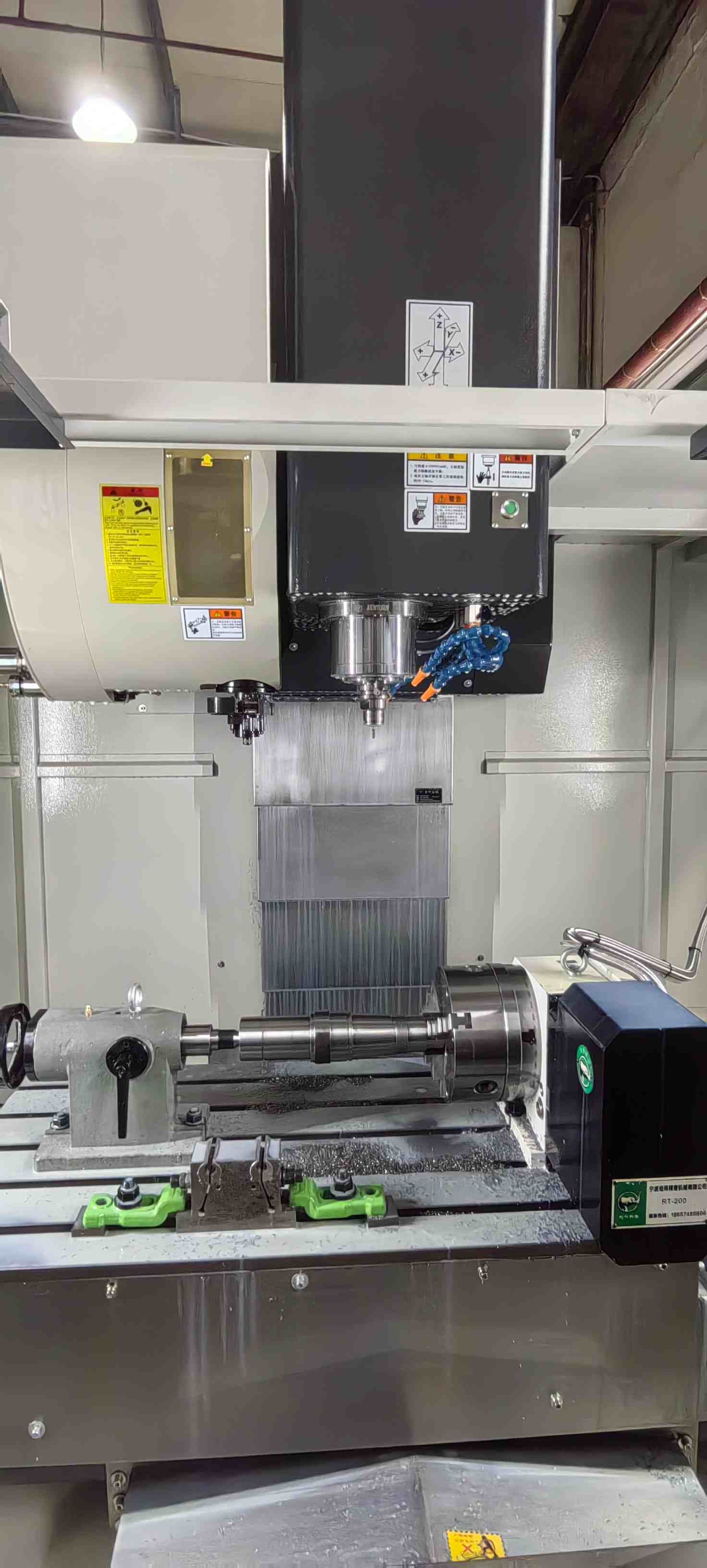

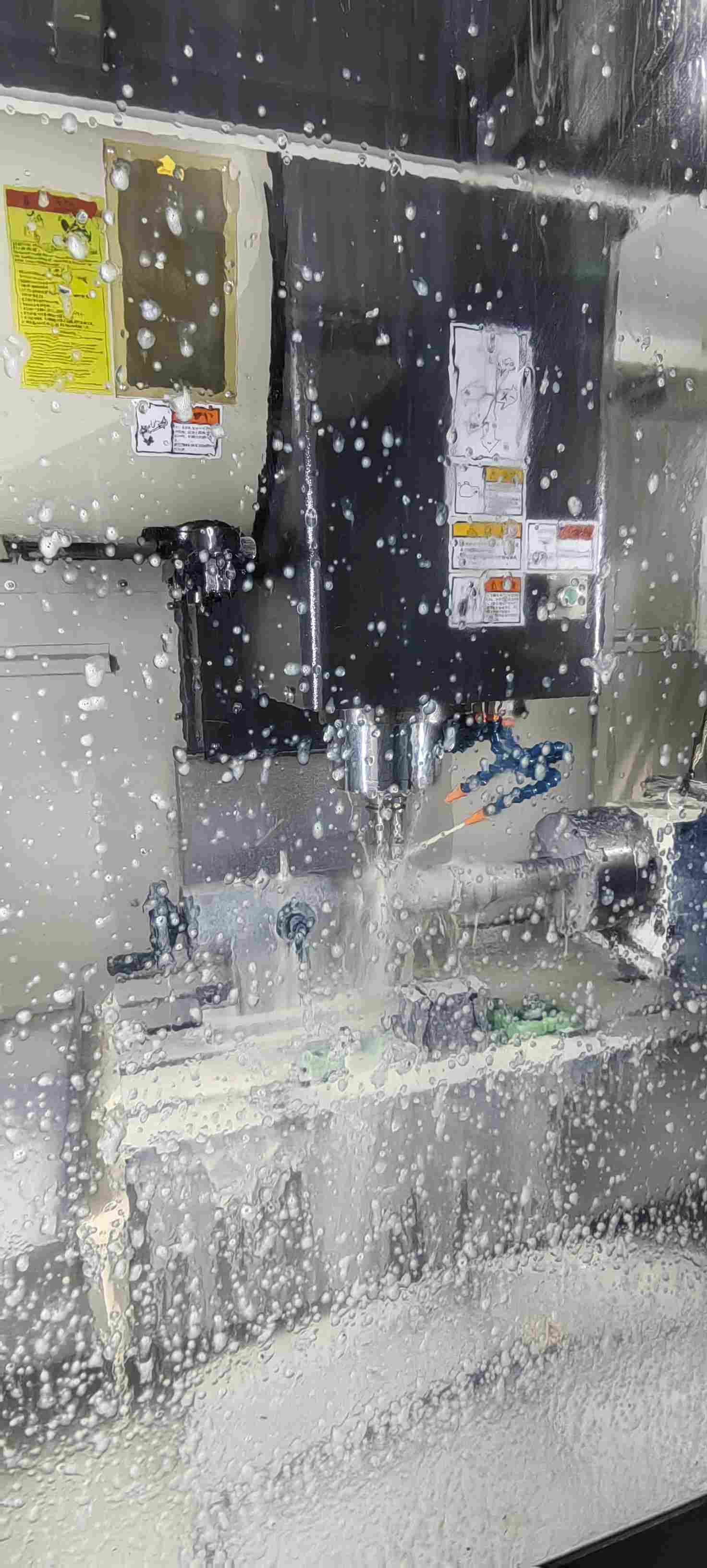

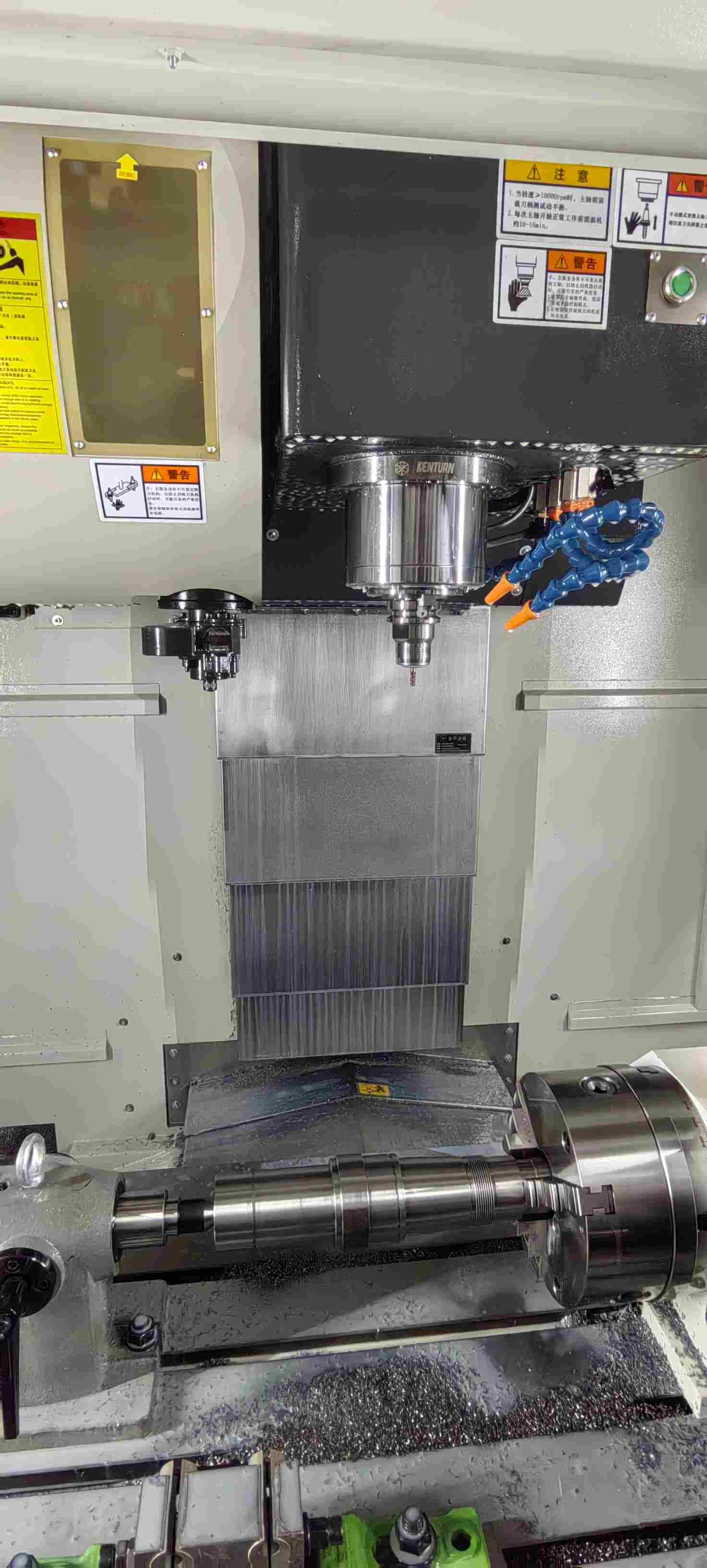

Our machines are fitted with high-accuracy RT-200 4th-axis rotary tables. Long-shaft workpieces are clamped between headstock and tailstock centers in one single setup. This rigid clamping setup minimizes vibration and workpiece deflection during machining, ensuring excellent parallelism, symmetry and depth tolerance for keyways. Continuous coolant spraying removes cutting heat, reduces tool wear and restrains thermal deformation, so consistent dimensional performance is achieved across mass-production batches.
Besides keyway milling for rotating shafts, our 4-axis machining centers can perform combined operations including flat milling, drilling, tapping, chamfering and thread cutting. Multiple features can be finished in one clamping, eliminating positioning errors caused by repeated re-fixture and shortening lead time. We machine motor shafts, worm shafts, reducer shafts, construction transmission shafts and marine mechanical shafts. Workpiece materials cover 42CrMo, 40Cr alloy steel, carbon steel and more. We follow customer drawing specifications strictly to control keyway width, depth, symmetry and surface roughness, achieving tight tolerance grades such as h9 / h8. Both low-volume prototype sampling and large-volume bulk export orders are acceptable.
Overseas buyers frequently face common manufacturing pain points: out-of-tolerance keyway symmetry, unstable batch dimensions, delayed lead time and scrap parts caused by misinterpreted drawings. We implement full-range quality control: drawing review, process planning, fixture setup, first-article inspection, in-process patrol inspection and final inspection. Mass production starts only after first-article approval. Keyway dimension checks are performed for every batch to prevent non-conforming parts from delivery. We can supply process photos and inspection reports, and support export-oriented shipments by sea or air.
With rich experience in export-oriented OEM & ODM custom machining, we understand international component standards well. If you are searching for a reliable supplier for shaft keyway milling and precision shaft CNC machining, please send us your 2D / 3D drawings. We will carry out quick process evaluation and offer competitive quotation with estimated lead time.
1. Equipment: 4-axis vertical machining centers with high-precision 4th-axis rotary table; head-tail center clamping specially optimized for long shaft keyway and multi-feature machining.
2. Precision: Strict control on keyway symmetry, parallelism and dimensional tolerance to meet assembly requirements of transmission parts.
3. Flexible order volume: Prototype sampling, small-medium batches and large-volume export orders are all welcome.
4. Export-ready service: English-language drawing communication, supporting export documents and shipment coordination.
5. One-stop solution: Turning, milling, grinding, threading and heat treatment available for complete shaft manufacturing.
Equipment manufacturers, trading companies and engineering partners are welcome to contact us. Send your shaft drawings for free process assessment and quotation.
