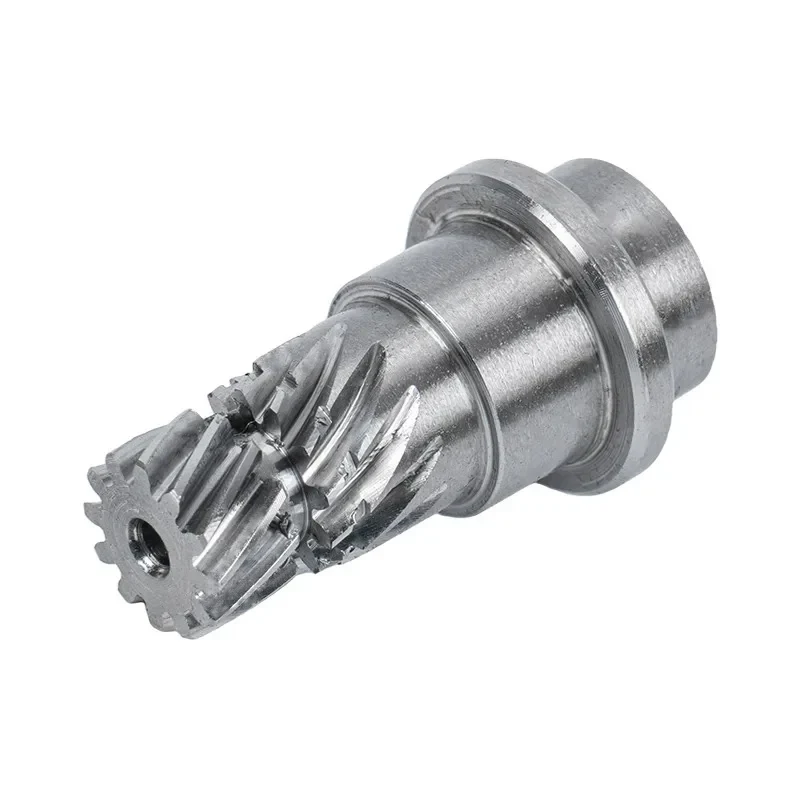

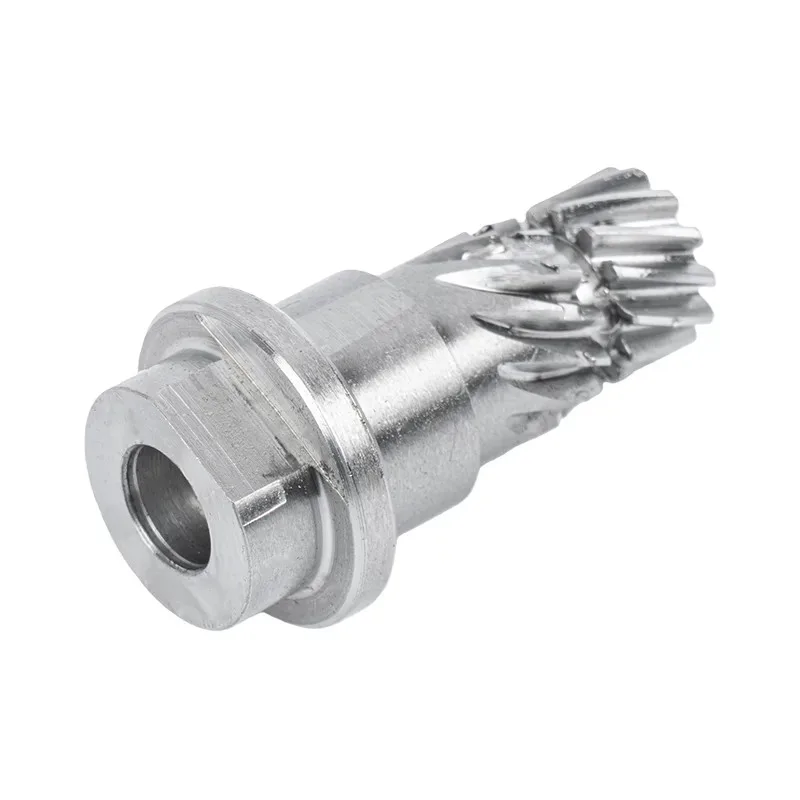

Guanshuo supplier, which has been focusing on precision shaft manufacturing for more than ten years, launches Triangular Spline Motor Shaft aiming at industry pain points such as limited space of small equipment, cost sensitivity of light-load transmission, and easy jamming of spline assembly. It adopts simple triangular tooth profile design, which greatly reduces processing cost while ensuring transmission centering accuracy, provides cost-effective spline shaft solutions for global equipment manufacturers, helping customers effectively reduce procurement costs while ensuring quality.
This is an economical spline shaft designed for light-load medium and low speed transmission, which is differentiated from heavy-load rectangular splines and high-precision involute splines, focusing on small space adaptation and high cost performance, and is an ideal choice for small equipment transmission.
1. Market Positioning: Economical transmission parts for small and micro equipment, light-load transmission scenarios, focusing on high cost performance and stability.
2. Structure Positioning: Adopts triangular tooth spline with compact radial size, especially suitable for designs with limited shaft diameter and installation space.
3. Scenario Positioning: Adapted to medium and low speed, light-load transmission within 5-50N·m torque range, not suitable for large torque heavy load scenarios.
4. Procurement Positioning: Simple processing technology, high production efficiency, low scrap rate, especially suitable for mass and economical procurement needs.
As our mature mass-produced economical shaft type, Triangular Spline Motor Shaft has stable supply and strong batch delivery capacity.
Triangular tooth profile is the core that distinguishes this product from other spline shafts. The simple tooth design brings unique advantages that other splines do not have, and solves transmission pain points of many small devices from the structure.
1. Compact and Space-saving: Triangular tooth profile has smaller radial size. Compared with rectangular splines and involute splines of the same torque, it occupies less radial space, perfectly adapting to the compact design requirements of small equipment.
2. High Self-centering Accuracy: Adopts tooth side centering method, automatically aligns the center during assembly, with good coaxiality, uniform force during transmission, stable operation and low vibration, avoiding eccentric transmission problems.
3. Simple Processing Technology: Triangular tooth profile has fewer processing steps, low tool cost, high production efficiency, and low scrap rate during processing, which effectively controls costs from the production end.
4. Smooth Assembly Without Jamming: Fixed tooth profile angle design, controllable fitting clearance, smooth insertion and removal of spline pairs, no jamming or seizure caused by processing errors, high assembly efficiency, and convenient later maintenance and disassembly.
Mature technology makes the quality of Triangular Spline Motor Shaft very stable, with good consistency of batch products.
All parameters are from actual product specifications, no false marking. Conventional specifications are as follows, special requirements can be negotiated for customization:
| Parameter Item | Specification Range |
|---|---|
| Spline equal division error | ≤0.01~0.02mm |
| Spline segment length | 15~150mm |
| Rated transmission torque | 5~50N·m |
Note: The above are conventional mass production specifications. For special requirements, please contact our engineering team for evaluation.
Many customers choose this product because it is worry-free enough during assembly and use, has no complicated requirements, has low requirements for workers' skills, and is simple to maintain later.
1. Low Assembly Threshold: Triangular tooth profile has guidance, it can be assembled by gently pushing in after alignment, no need to adjust the angle repeatedly, new workers can assemble quickly, and there will be no problems of misalignment and jamming.
2. Smooth Transmission: The tooth side matching clearance is uniform, there is no impact and abnormal noise during operation, the transmission is stable and vibration is small, which improves the overall operation quality of the equipment.
3. Stable and Durable: There are no sharp tooth corners, the stress distribution is uniform, there will be no tooth breakage and excessive wear after long-term use under light load conditions, and the service life is long.
4. Convenient Maintenance: Simple disassembly, no seizure that cannot be disassembled after long-term use, convenient for later maintenance and replacement of parts.
5. Strong Compatibility: Standard tooth profile is common with conventional triangular spline hole parts on the market, with good replaceability.
Many customers feedback that after using Triangular Spline Motor Shaft, the assembly efficiency of the production line is significantly improved, and spline-related after-sales problems are reduced.
High cost performance is the core competitiveness of this product. We control costs throughout the whole chain from production to supply, so that customers can get real favorable prices without paying unnecessary costs.
1. Factory Direct Supply: We are the original production factory, no middlemen mark up prices, directly connect with customers, with obvious price advantage.
2. Process Cost Reduction: Triangular tooth profile has high processing efficiency, low tool loss, low scrap rate, and processing cost is lower than other spline types.
3. Bulk Discount: Wholesale and bulk purchases enjoy exclusive tiered prices, the larger the purchase volume, the lower the unit price, effectively reducing customers' bulk procurement costs.
4. Low Maintenance Cost: The product has low failure rate and long service life, reducing the cost of after-sales replacement and maintenance.
For cost-sensitive bulk procurement projects, Triangular Spline Motor Shaft is a very competitive choice, which can effectively reduce BOM costs while ensuring quality.
We provide flexible customization services to meet different customers' differentiated design needs, and small batch customization is also acceptable.
1. Size Customization: Spline length, shaft diameter, tooth size, shaft end structure and other dimensions can be processed according to customer drawings.
2. Accuracy Customization: For occasions with special accuracy requirements, spline processing accuracy can be improved to meet higher transmission requirements.
3. Sample Service: Conventional samples are delivered in 7-10 days, small batch trial production orders are available, and mass production starts after sample confirmation.
Although it is an economical product, our quality standards are not reduced at all. The whole-process quality control system ensures that each batch of products meets the requirements, and we will not reduce quality because of low prices.
1. System Certification: The factory has passed ISO9001 quality management system certification, and the processing process is strictly implemented in accordance with the work instructions.
2. Equipment Guarantee: Processed by professional processing equipment, equipped with professional testing instruments to ensure product accuracy.
3. Full Inspection Process: Spline equal division accuracy and fitting smoothness are 100% fully inspected, each product has passed trial assembly test, there will be no jamming, too loose or too tight fitting problems.
4. Material Guarantee: All raw materials come from regular steel mills, each batch has material certificate, we will not use inferior materials to shoddy.
For bulk purchase customers, we provide exclusive procurement services to ensure price advantage and stable delivery, and be a reliable long-term supply chain partner for customers.
1. Tiered Price: The larger the purchase volume, the lower the unit price. Annual framework agreements can be signed for long-term cooperation to lock in annual prices.
2. Priority Production: Long-term bulk customers enjoy priority production scheduling, delivery can be guaranteed even in peak season, and delivery will not be delayed due to many orders.
3. Inventory Service: We can reserve safety stock for long-term customers for conventional specifications, and goods can be shipped quickly after placing an order, shortening delivery time.
4. Dedicated Contact: Bulk customers are equipped with dedicated contact person to follow up the order progress throughout the process and quickly respond to various problems.
5. Flexible Delivery: Support delivery in batches, arrange delivery according to customers' production plans, reducing customers' inventory pressure.
A1: It is especially suitable for small and micro equipment with limited installation space, and light-load, medium-low speed transmission scenarios.
A2: It saves more radial space, has lower processing cost, is smoother to assemble without jamming, and has higher cost performance, suitable for light load scenarios; for heavy load and high precision scenarios, other spline types are recommended.
A3: The triangular tooth profile has good self-centering effect, high coaxiality, uniform matching clearance, stable transmission and low vibration, there will be no abnormal noise under normal use.
A4: Assembly is very simple, the tooth profile has natural guidance, it can be pushed in after alignment. Each of our products has passed fitting test, there will be no jamming and installation failure.
A5: Yes, wholesale and bulk purchases enjoy exclusive tiered discounts, the larger the purchase volume, the more favorable the price, welcome to inquire for bulk quotation.
A6: We are the original production factory, directly connect with customers without middlemen, the price has obvious advantage under the same quality, and the cost performance is very high.
A7: The torque range of conventional products is 5-50N·m, suitable for light load transmission, not suitable for large torque heavy load scenarios.
A8: The conventional spline length range is 15-150mm, special length can be contacted with us for evaluation and customization.
We welcome customers from all over the world to inquire and purchase. Whether it is standard product selection or customized needs, our professional team will provide you with quick response service. All contact information is as follows:
| Contact Category | Details |
|---|---|
| Company Name | Ningbo Guanshuo Precision Hardware Co., Ltd. |
| Factory Address | Qingqing Road 268-1, Jiaochuan Sub-district, Zhenhai District, Ningbo City, Zhejiang Province, China |
| Hotline | +86-15990709753 |
We promise to reply to all inquiries within 24 hours, provide free sample testing, professional selection support, and factory inspection reception. We look forward to establishing long-term cooperation with you and providing cost-effective precision transmission solutions for your projects.
