Guanshuo China factory mass-produces high-precision servo motor shafts. Adopting CNC turning and ultra-precision grinding technology, the measured coaxiality is strictly controlled within ≤0.005mm, and the dynamic balance correction can reach G1 grade. The lightweight low-inertia structure greatly improves the high-speed response speed of servo equipment. The shaft supports three hardening processes: nitriding, chrome plating and surface quenching. Custom structures such as taper, spline, internal thread and keyway are available to match encoders and couplings. The factory owns 11 shaft patents and ISO9001 qualifications, provides free sample test reports and a unified 24-month warranty, serving as the core transmission parts for procurement of high-end precision servo equipment.
| Parameter Item | Standard Value |
|---|---|
| Standard Taper | 1:10 |
| Internal Thread Range | M4～M12 |
| End Face Chamfer | C0.5～C2 |
| Finished Coaxiality | ≤0.005mm |
| Dynamic Balance Grade | G1 |
1. Machining flow: CNC turning forming matched with ultra-precision cylindrical grinding to guarantee uniform dimensional consistency.
2. Full inspection standard: Each shaft undergoes independent dynamic balance, size and roughness inspection with complete test records retained.
3. Document support: Batch inspection reports can be provided for customer acceptance and project bidding.
Standardized processing and strict full-inspection system ensure stable and consistent precision of each batch of servo motor shafts for long-term mass matching.
Different from ordinary industrial motor shafts on the market, Guanshuo servo motor shafts are specially optimized for exclusive servo working conditions, focusing on four core demands: high precision, low loss, fast response and long service life, solving common industry defects such as high-speed jitter, positioning offset and rapid wear.
Main Performance Highlights
1. Ultra-high coaxiality: CNC turning + ultra-fine grinding delivers coaxiality ≤0.005mm to cut friction heat and vibration during high-speed running.
2. G1 top-grade dynamic balance: Independent dynamic balance correction realizes low vibration and low noise, suitable for silent precision equipment.
3. Lightweight low-inertia design: Optimized high-strength material structure reduces moment of inertia for faster servo start-stop response.
4. Multi-type hardening treatment: Quenching, nitriding and chrome plating options improve surface hardness and wear resistance without precision decay after long-term operation.

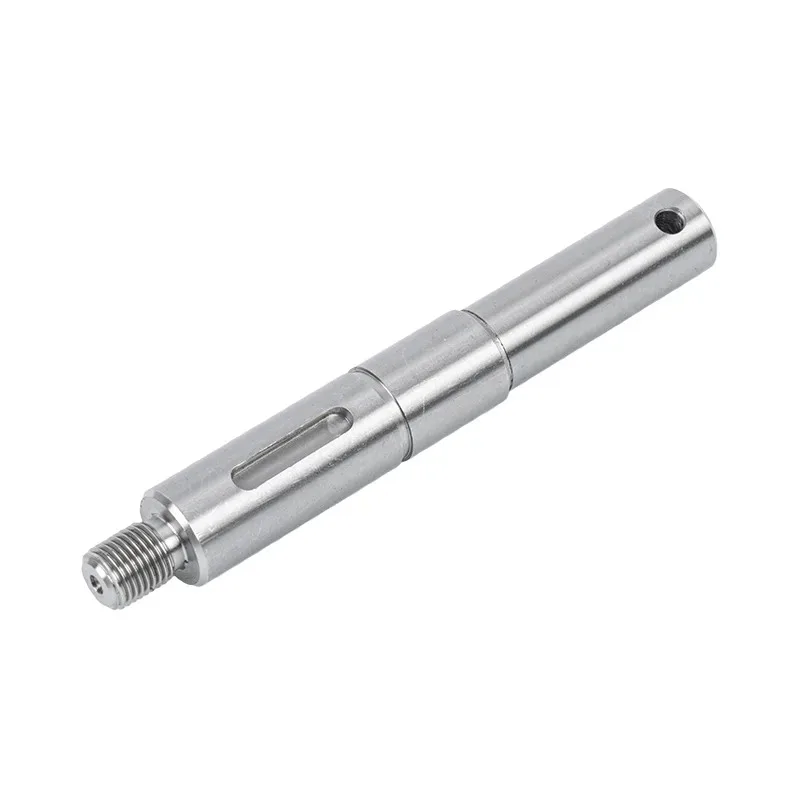

5. Full-structure customization: Taper, spline, thread, keyway and step structures can be customized to match encoders, couplings and brakes.
Integrating precision, dynamic performance, durability and flexible customization, this shaft covers all procurement scenarios of small and medium-sized high-precision servo equipment.
As a national high-tech enterprise with over ten years of precision shaft manufacturing experience, Guanshuo Precision owns complete qualifications, patented technologies, standardized production lines and full-process quality control systems, providing authoritative support for stable mass delivery of servo motor shafts and complying with Google EEAT trust standards.
Core Enterprise Advantages
1. Certification system: ISO9001 certified, ISO/TS16949 inspection standard available for bulk industrial orders with traceable full-process records.
2. Patent technology: 11 utility patents for shaft structures including low-inertia and high-balance optimized servo shaft designs.

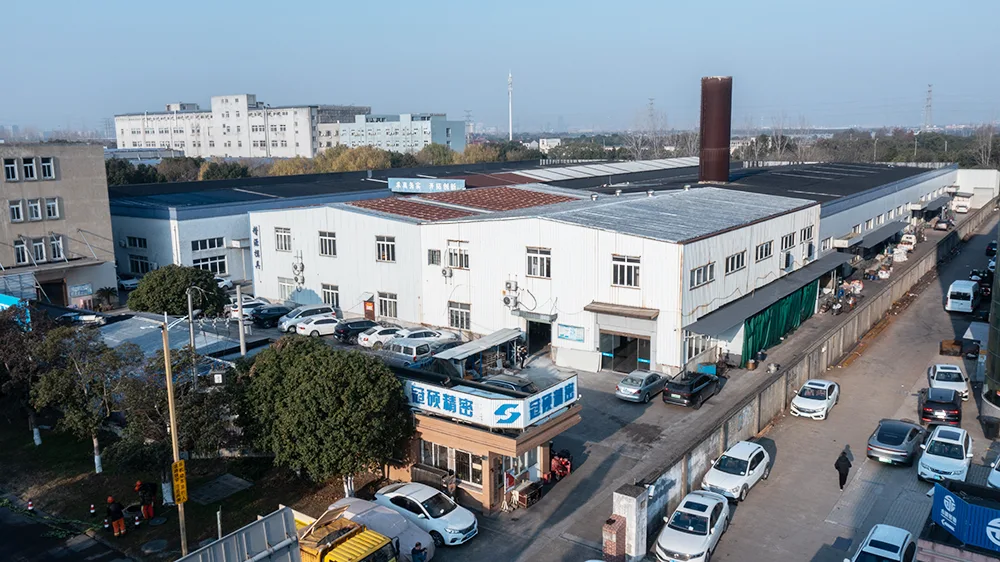

3. Production & test equipment: Over 60 CNC machines and complete testing instruments, 6 full-time QC staff conduct three-stage inspection for raw materials, semi-finished and finished goods.
4. Global cooperation experience: Long-term supporting brands like Omron and Decathlon, participated in Ningbo Hardware Import & Export Fair in Nov 2025 with exported mass servo shafts.
Complete qualification, mature production capacity and rich overseas supporting experience make us a reliable long-term supplier for global automation equipment manufacturers.
With micron-level positioning, low vibration, fast response and long service life, the shafts fit various automated equipment relying on servo systems for high-precision processing, transplanting and detection, covering mainstream high-end industrial fields.
Typical Application Fields
1. Precision processing equipment: CNC engraving machines and small CNC centers, ultra-high coaxiality ensures long-time processing without dimensional deviation.
2. Automated transplant modules: Linear sliding tables and sorting equipment, low-inertia structure improves start-stop response and production line efficiency.
3. Precision testing instruments: Laboratory and vision inspection equipment, G1 dynamic balance avoids vibration interference to detection data.
4. New energy supporting equipment: Lithium battery processing devices, lightweight structure cuts energy consumption for high-frequency reciprocating operation.
5. Intelligent warehouse equipment: Small servo stacking and sorting components, wear-resistant hardened shaft adapts to non-stop all-day production.
All automated equipment requiring strict standards for positioning accuracy, running noise and dynamic response can adopt our servo motor shaft as core transmission parts.
Relying on standardized official service system, Guanshuo provides one-stop full-process service for global buyers including installation guidance, technical support, warranty policy and remote troubleshooting, avoiding precision deviation, jitter and abnormal noise caused by improper installation of precision servo shafts.
Complete Service Items
1. Professional installation guidance: Standard graphic installation guide covering shaft cleaning, coupling alignment, encoder calibration, torque standard and gap adjustment steps.
2. Full-time technical support: Professional engineering team provides exclusive assembly scheme for non-standard customized shafts to solve structure interference and matching problems.
3. 24-month unified warranty: Free after-sales handling for non-artificial quality defects under normal installation and standardized use with full traceable quality records.
4. 48-hour remote diagnosis: Online technical support and solution output for global customers to minimize equipment downtime loss.
5. Sample & inspection assistance: Free pre-production samples and batch inspection documents to reduce matching risks of mass procurement.
Complete installation guidance and standardized after-sales system standardize assembly process, lower failure rate and extend shaft service life to provide stable guarantee for long-term equipment operation.
Below are frequently asked questions from global purchasers about servo motor shaft precision, customization, service and performance, with detailed real-data answers based on official product specifications and factory standards.
A: Our servo motor shaft adopts CNC turning and ultra-precision grinding process with stable finished coaxiality ≤0.005mm. Extremely low radial runout greatly reduces friction vibration and operation noise during high-speed running, eliminates positioning offset after long-term operation and maintains micron-level repeated positioning accuracy of automated equipment without decay.
A: All finished products go through independent dynamic balance correction to reach top industrial G1 grade. Compared with conventional G2.5/G6 motor shafts, vibration and noise are greatly reduced at high rotating speed, perfectly suitable for long-time continuous high-speed operation of silent precision servo equipment without jitter or abnormal noise.
A: Three mature surface strengthening processes are optional: surface quenching, nitriding and chrome plating. Hardened shaft surface gains higher hardness and wear resistance, maintaining original precision after long-term non-stop operation and effectively extending the whole service life of servo motors.
A: Customizable structures include 1:10 standard taper, M4~M12 internal thread, keyway, spline, double step and taper surface. Structural sizes can be adjusted according to encoder, coupling and brake assembly drawings to quickly match non-standard servo systems and shorten project delivery cycle.
A: Yes. Standardized CNC processing, grinding and dynamic balance procedures with fixed parameters. Every batch undergoes full inspection via 2D projector, dynamic balance tester and roughness meter with complete test reports. Coaxiality, runout and balance grade are highly unified for strong assembly interchangeability.
A: Applicable to CNC processing equipment, automatic transplant sliding tables, precision testing instruments, new energy lithium battery processing equipment, intelligent warehouse sorting equipment and all industrial automation devices equipped with servo drive systems requiring high positioning accuracy and fast response.
A: Free sample trial production is supported. Complete dimensional test reports, dynamic balance records and material process certificates can be supplied for each batch before delivery. All test data are measured by workshop precision instruments, directly available for equipment acceptance, project bidding and qualification review.
We provide multiple convenient contact channels for global purchasers to inquire about samples, quotation, customization and technical scheme of servo motor shafts, supporting various cooperation modes including small-batch trial order and long-term bulk export matching.
Contact Information List
1. Company Name: Ningbo Guanshuo Precision Hardware Co., Ltd.
2. Factory Address: No.268-1 Qingqing Road, Jiaochuan Sub-district, Zhenhai District, Ningbo City, Zhejiang Province, China
3. Cooperation Modes: Non-standard drawing customization, free sample trial, mass bulk procurement, cross-border overseas order matching, one-on-one engineer technical consultation and quotation.
Welcome global automation equipment manufacturers and trading companies to contact us for technical communication, sample testing and bulk cooperation of high-precision shafts.
