China-based Ningbo Guanshuo Precision Hardware Co., Ltd. manufactures high-precision Machine Tool Spindle Motor Shafts engineered for ultra-high-speed machining applications. With dynamic balance accuracy reaching G0.1-G0.4 and surface hardness up to HRC60-65, our spindle shafts deliver exceptional rigidity, wear resistance, and positioning accuracy for CNC lathes, milling machines, grinders, and engraving machines. Backed by 10+ years of precision manufacturing experience and 11 patented technologies, we provide reliable shaft solutions for machine tool builders worldwide.
Our product are engineered to deliver industry-leading performance across six critical dimensions that directly impact machining quality and efficiency.
| Performance Indicator | Specification | Benefit |
|---|---|---|
| Dynamic Balance Accuracy | G0.1 - G0.4 grade | No resonance or micro-vibration at ultra-high speeds |
| Maximum Speed | 10,000+ RPM | Suitable for high-speed cutting and finishing operations |
| Surface Hardness | HRC 60-65 | Resistant to particle wear and instantaneous cutting impact |
| Surface Roughness | Ra 0.012-0.025 μm (mating surfaces) | Minimizes friction loss and extends service life |
| Shaft Shoulder Positioning Accuracy | ≤ 0.001 mm | Seamless direct connection with chucks and tool holders |
| Diameter Runout | ≤ 0.001-0.003 mm | Ensures concentricity and machining precision |
The following table outlines standard parameters for our Machine Tool Spindle Motor Shaft product line. Custom dimensions and specifications can be engineered to meet your specific machine tool requirements.
| Parameter | Standard Range | Customization Available |
|---|---|---|
| Shaft Diameter | φ10 ~ φ80 mm | Yes |
| Shaft Length | - | Yes |
| Surface Roughness (mating surface) | Ra 0.012 ~ 0.025 μm | Consult factory |
| Surface Roughness (general surface) | Ra 0.1 ~ 0.4 μm | Yes |
| Diameter Runout | ≤ 0.001 ~ 0.003 mm | Yes |
| Dynamic Balance Grade | G0.1 ~ G0.4 | Yes |
| Surface Hardness | HRC 60 ~ 65 | Yes (per treatment method) |
| Shaft Design | Solid shaft / Hollow shaft | Yes |
| Taper Interface Options | BT30 / BT40 / BT50 | Other standards available |
| Connection Features | Splines, threaded sections, keyways | Fully customizable |
Every product from Guanshuo is designed with six core advantages that set it apart from standard industrial shafts, ensuring superior performance in demanding machining environments.
● Dynamic balance accuracy reaches G0.1-G0.4 grade
● Precision correction through weight reduction or weighting methods
● Suitable for continuous operation above 10,000 RPM
● No resonance or micro-vibration even at maximum speed
● Meets procurement standards for ultra-high-speed machine tool cutting
● Surface hardness reaches HRC 60-65
● Resistant to abrasive particle wear
● Withstands instantaneous cutting impact loads
● Extended service life compared to standard shafts
● Reduces downtime and replacement costs
● Mating surface roughness: Ra 0.012-0.025 μm
● Significantly reduces friction loss at mating interfaces
● Improves energy efficiency and reduces heat generation
● Enhances fitting precision with bearings and tool holders
● Minimizes wear during high-speed operation
● Shaft shoulder positioning accuracy ≤ 0.001 mm
● Enables seamless direct connection with chucks and tool holders
● Eliminates assembly errors and alignment issues
● Ensures consistent machining precision batch after batch
● Meets requirements for customized assembly procurement
● Supports both solid and hollow shaft designs
● Capable of processing conical surfaces (BT30/BT40/BT50)
● Splines and threaded connection sections available
● Customizable length, diameter, and feature geometry
● Adaptable to various machine tool spindle configurations
● Ion nitriding for enhanced surface hardness
● Vacuum carburizing and quenching for deep case hardening
● CVD/PVD hard coating for extreme wear resistance
● Treatment selected based on application requirements
● Optimized balance of hardness, toughness, and cost
We offer multiple surface treatment options for our Machine Tool Spindle Motor Shafts, each optimized for specific operating conditions and performance requirements.
● Process: Plasma-assisted nitriding in controlled vacuum environment
● Best for: General-purpose spindles, medium-load applications
● Advantages: Low distortion, excellent dimensional stability
● Process: High-temperature carbon diffusion followed by rapid quenching
● Hardness: HRC 60-65 (surface)
● Best for: Heavy-duty cutting, high-impact applications
● Advantages: Deep hardened layer, high load-bearing capacity
● Process: Chemical or physical vapor deposition of ceramic coatings
● Best for: High-speed machining, abrasive materials, dry cutting
● Advantages: Extreme wear resistance, low friction coefficient
Our Machine Tool Spindle Motor Shafts are versatile components suitable for a wide range of machine tool types and machining processes. Base material, surface treatment, and design configuration can be selected based on your specific machine tool type and processing technology.
Typical applications: Turning centers, CNC lathes, multi-tasking machines
Key requirements: High rigidity, good concentricity, stable performance under varying cutting loads
Recommended configuration: Vacuum carburized shaft with solid or hollow design, BT or other standard taper interfaces
Typical applications: Vertical machining centers, horizontal machining centers, 5-axis milling machines
Key requirements: Ultra-high dynamic balance, high speed capability, precision tool positioning
Recommended configuration: G0.1-G0.4 dynamic balance, ion nitriding or PVD coating, BT30/BT40/BT50 taper
Typical applications: Surface grinders, cylindrical grinders, precision tool grinders
Key requirements: Extreme rotational accuracy, minimal runout, smooth vibration-free operation
Recommended configuration: Super-finished mating surfaces (Ra ≤0.025μm), high-precision grinding, optimized balance
Typical applications: CNC engraving machines, high-speed milling spindles, PCB drilling machines
Key requirements: Very high RPM capability, light weight, excellent dynamic balance
Recommended configuration: Hollow shaft design for weight reduction, G0.1 dynamic balance, PVD coated surfaces
We understand that every machine tool application is unique. That's why our Machine Tool Spindle Motor Shafts are fully customizable to meet your exact specifications and performance requirements.
Customization options include:
● Dimensional customization: Custom diameter, length, and feature geometry
● Taper interface options: BT30, BT40, BT50, CAT, SK, HSK, or custom profiles
● Connection features: Splines, keyways, threads, internal cooling channels
● Surface treatment: Ion nitriding, vacuum carburizing, CVD/PVD coating
● Balance grade: Custom dynamic balance specifications per speed requirements
● Special features: Hollow shaft, through-hole design, sensor mounting positions
Customization process:
1. Submit your drawings or specifications
2. Our engineering team reviews and provides feasibility assessment
3. Prototype development and sample approval
4. Mass production with consistent quality control
Quality is built into every stage of our product manufacturing process. From raw material inspection to final dynamic balance testing, we ensure every shaft meets the highest precision standards.
Incoming Material Inspection:
● Material certification verification
● Hardness testing
● Chemical composition analysis
In-Process Quality Control:
● SPC statistical process control at key operations
● 100% dimensional inspection at each production stage
● Surface roughness verification
● Hardness testing after heat treatment
Final Inspection & Testing:
● Dynamic balance testing (G0.1-G0.4 verification)
● Runout and concentricity measurement
● Surface quality and coating integrity inspection
● Hardness and case depth verification

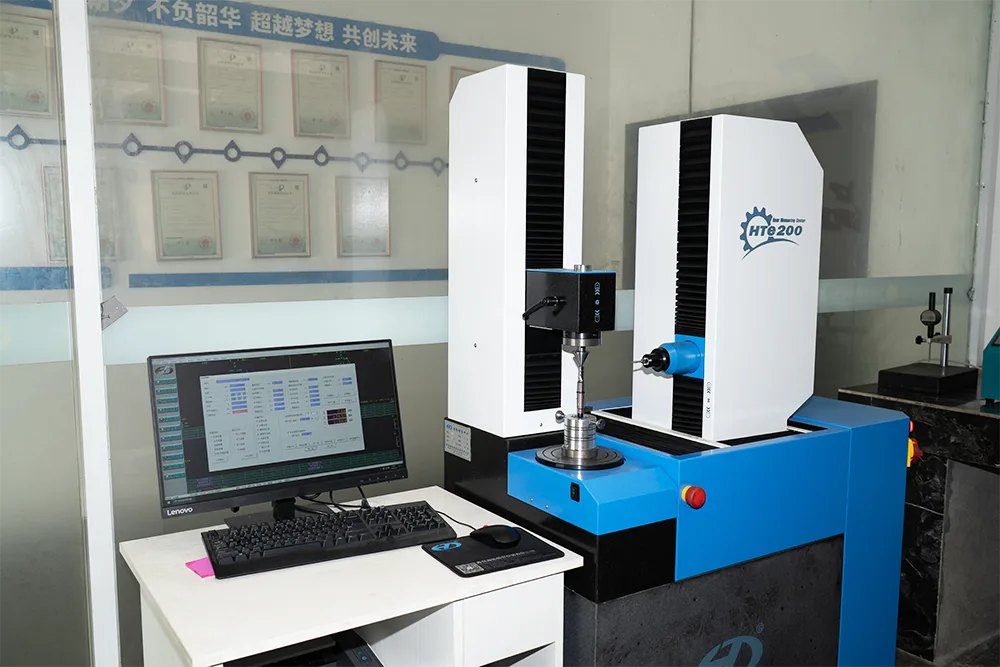

Inspection Equipment:
● Full-automatic optical inspection system
● Two-dimensional projectors
● Surface finish gauges
● Cylindricity measuring instruments
● Hardness testers
When you partner with Guanshuo for your Machine Tool Spindle Motor Shaft needs, you get more than just a component supplier --- you get a precision manufacturing partner committed to your success.
10+ Years of Precision Manufacturing Experience
Established in 2016, we have over a decade of expertise in high-precision motor shaft manufacturing, serving industries including new energy vehicles, industrial automation, and machine tools.
National High-Tech Enterprise
Recognized as a national-level high-tech enterprise with 11 patented technologies in shaft design and manufacturing innovation.

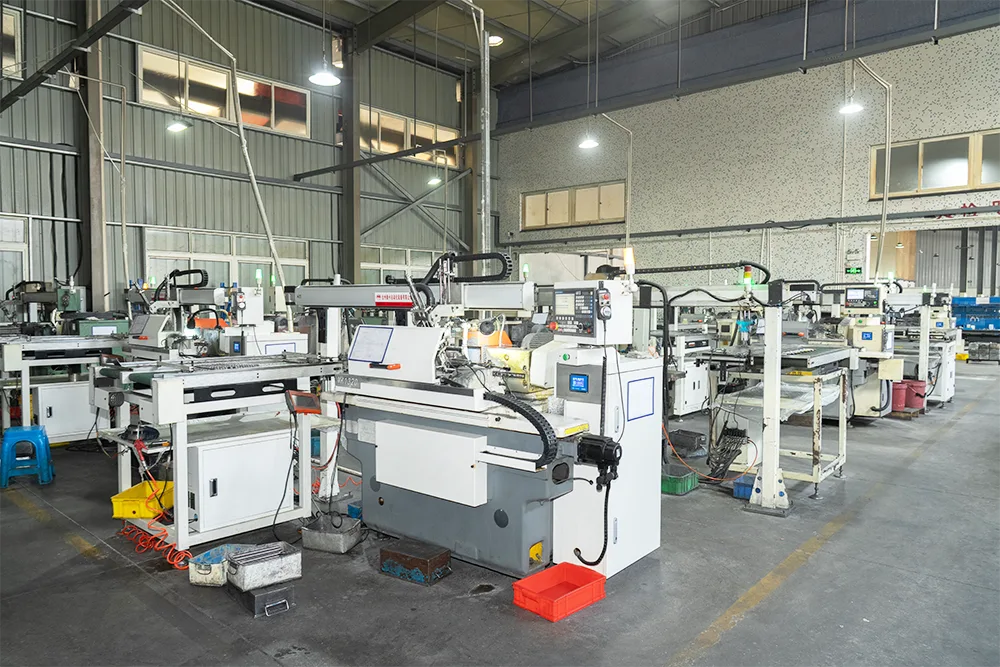

Advanced Production Equipment
26 CNC cylindrical grinders, 6 high-precision centerless grinders, 3 turning-milling combined machines, and full-automatic optical inspection systems ensure consistent precision.
ISO-Certified Quality Management
ISO 9001:2015 and ISO/TS 16949 certified quality management systems ensure reliable, repeatable quality across every production batch.
Engineering Support
3 dedicated engineering technicians provide design for manufacturability (DFM) feedback and technical support throughout your project.
Flexible Production Capacity
From prototype development to high-volume production, we scale to meet your requirements with fast turnaround times.
To help you specify and order the right Machine Tool Spindle Motor Shaft for your application, please review the following ordering information.
1. Provide your specifications: Share your drawings, performance requirements, and quantity needs
2. Technical review: Our engineering team evaluates feasibility and provides recommendations
3. Quotation: Receive a detailed quote with pricing, lead time, and specifications
4. Sample approval: Request prototype samples for testing and validation. Stock standard samples are free (buyer pays freight), while custom samples per drawings require machining costs (fully deducted from the first bulk order that meets standard MOQ), with lead times of 1--3 days for stock, 7--12 days for machined, and 12--18 days for heat-treated/special-finish items; all shipping fees are on the buyer's side, and annual clients with purchases over USD 30,000 are entitled to up to 3 free custom samples per new model each year.
5. Production: Mass production with full quality traceability
6. Delivery: Worldwide shipping with proper packaging and protection
● 2D drawings (PDF/DWG) or 3D models (STEP/IGES)
● Required material specification
● Surface treatment requirements
● Dynamic balance grade and speed requirements
● Tolerance specifications
● Annual or batch quantity
● Target delivery date
● Individual protective packaging to prevent damage during transit
● Rust prevention treatment for long-term storage
● Shipping via sea, air, or express per customer preference
● Export documentation provided
Below are frequently asked questions about our Machine Tool Spindle Motor Shafts. For specific technical or pricing inquiries, contact our engineering sales team directly.
A: G-grade indicates the maximum allowable residual unbalance. G0.1 is the highest precision grade for ultra-high-speed spindles (typically 30,000+ RPM). G0.4 is suitable for high-speed machining centers (10,000-30,000 RPM). G2.5 is standard for general-purpose machine tool spindles (below 10,000 RPM). We'll recommend the appropriate grade based on your operating speed and application.
A: It depends on your operating conditions. Ion nitriding offers good wear resistance with minimal distortion --- ideal for precision spindles. Vacuum carburizing provides a deep hardened layer for heavy-load, high-impact applications. CVD/PVD coatings offer the highest wear resistance for high-speed dry cutting or abrasive material machining. Share your application details and we'll recommend the optimal treatment.
A: Yes, we can produce all standard taper interfaces including BT30, BT40, and BT50 as standard options. We also support CAT, SK, and HSK standards, as well as custom taper profiles. All tapers are manufactured to the respective ISO or DIN standard tolerances.
A: Solid shafts offer maximum rigidity and load capacity. Hollow shafts reduce rotating mass and inertia, which is beneficial for high-speed applications requiring rapid acceleration/deceleration. Hollow design also enables through-spindle coolant (TSC) or drawbar mechanisms. We can help you determine the optimal design based on your speed, load, and functional requirements.
A: Standard parts MOQ 500--1000pcs, custom shafts/gears 300pcs, 42CrMo alloy 800pcs. Orders below MOQ accepted with 30%--50% surcharge (waived if ≥USD 5,000). Mixed items can combine to meet MOQ. Regular clients may negotiate lower MOQ.
A: Sample lead time: 1--3 days for stock items, 7--12 days for custom machined, 12--18 days if heat treatment/special finish needed. Mass production: 15--25 working days, depending on quantity and complexity. Expedited service available on request -- please ask for details and pricing.
A: Yes, we support prototype development and small-batch production for validation testing. We recommend ordering 3-5 samples for comprehensive performance testing and validation before committing to full production.
A: We implement full-process quality traceability with SPC statistical process control at key manufacturing stages. Every shaft undergoes 100% dimensional inspection at multiple production stages, plus final dynamic balance testing. Each batch includes material certificates and inspection reports.
A: We are ISO 9001:2015 and ISO/TS 16949 certified. We are also a national-level high-tech enterprise with 11 patented technologies in shaft design and manufacturing.
A: Yes, material certificates (mill test reports) are provided for each batch. We can also provide dimensional inspection reports, dynamic balance test reports, and hardness test reports upon request. Special third-party inspection can also be arranged at additional cost.
Whether you need a custom Machine Tool Spindle Motor Shaft quotation, technical consultation, or sample evaluation, our engineering sales team is ready to assist you. Contact us through any of the channels below --- we typically respond within 24 business hours.
Phone / WhatsApp: +86-15990709753
Response Time: Within 24 hours on business days
Our 3-member engineering team provides DFM analysis, material selection guidance, and design optimization support. Need help selecting the right surface treatment or balance grade for your spindle application? Send us your operating parameters and we'll recommend the optimal configuration.
To provide you with an accurate and fast quotation, please include the following information:
● 2D drawings (PDF/DWG) or 3D models (STEP/IGES)
● Required material and surface treatment
● Operating speed and dynamic balance requirements
● Tolerance and precision specifications
● Estimated annual quantity or batch size
● Target delivery date
Ningbo Guanshuo Precision Hardware Co., Ltd.
● Factory Address: Qingqing Road 268-1, Jiaochuan Sub-district, Zhenhai District, Ningbo City, Zhejiang Province, China
● Established: 2016
● Employees: 50+
● Certifications: ISO 9001, ISO/TS 16949, National High-Tech Enterprise
