Standard motor shafts fail in hydraulic systems. High-pressure impact causes deformation. Hydraulic oil triggers corrosion and coating peeling that contaminates the entire system. Poor sealing precision leads to leaks and pressure loss. Manufactured in Ningbo, China by Ningbo Guanshuo Precision Hardware Co., Ltd., our Hydraulic Driven Motor Shafts are purpose-built to solve these exact problems --- not repurposed from general-purpose motor shafts.
Hydraulic systems place unique demands on motor shafts that standard designs simply cannot meet. Understanding these challenges is why our motor shafts outperform generic alternatives in real-world operating conditions.
Four critical problems with standard motor shafts in hydraulic applications:
1. Impact & Load Failure --- High-pressure shocks and alternating loads cause deformation, fatigue cracking, and eventual fracture
2. Oil Contamination --- Rust particles and peeling coatings mix into hydraulic oil, damaging pumps, valves, and seals system-wide
3. Sealing & Leakage --- Insufficient surface precision causes seal wear, oil leakage, and pressure drops that reduce system efficiency
4. Assembly Compatibility --- Poor dimensional control and limited connection options slow down assembly and reduce equipment reliability

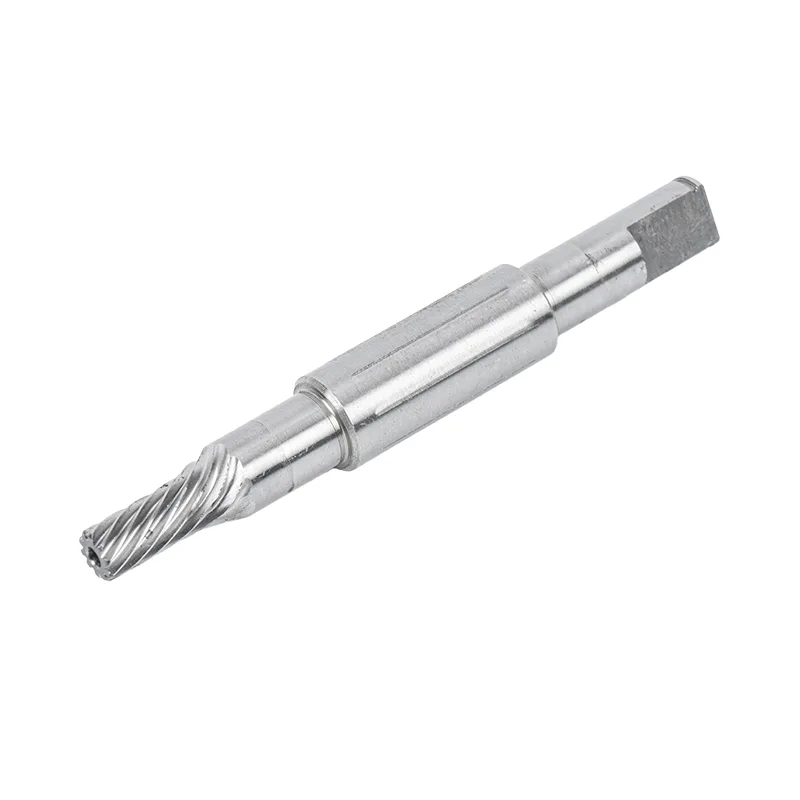

Guanshuo Hydraulic Driven Motor Shafts address all four challenges through targeted material engineering, surface treatment, and precision manufacturing --- delivering shafts that truly belong in hydraulic systems.
The number one failure mode for hydraulic shafts is deformation or fracture under high-pressure impact and alternating loads. Our motor shafts solve this with a carefully engineered material structure: a hard, wear-resistant surface backed by a tough, shock-absorbing core.
How we achieve impact resistance:
● Quenching & Tempering Base --- Foundation treatment reaching HB 260-300 hardness for balanced overall strength and ductility
● Surface Hardening Layer --- Additional quenching, carburizing, or nitriding creates a deep hardened zone (1.5-3.0mm) with HRC 58-62 surface hardness
● Tough Core --- Core toughness ≥ 90 J/cm² prevents brittle fracture under sudden high-pressure shocks
● Shaft Extension Hardening --- High-frequency quenching on extended sections achieves HRC 45-55 hardness at connection points
The result: A Hydraulic Driven Motor Shaft that withstands instantaneous high-pressure impacts and repeated load cycles without deforming or breaking --- significantly extending service life and reducing replacement frequency.
Hydraulic oil contamination is a silent killer of hydraulic systems. Rust particles and coating fragments from a single failing shaft can circulate through the entire system, damaging pumps, scratching valve surfaces, and destroying seals. Our motor shafts are designed to protect oil cleanliness from the source.
Anti-corrosion design features:
● Hard Coating on Critical Surfaces --- Sealing and mating surfaces receive hard coating treatment that resists corrosion and prevents peeling
● Mirror Polishing --- Ultra-smooth surface finish (Ra 0.05-0.2 μm on sealing sections) reduces surface area for corrosion to take hold
● Hydraulic Oil-Specific Structure --- Material and coating selected for compatibility with hydraulic oil media
● Wear Resistance --- HRC 58-62 surface hardness prevents abrasive wear that could generate particles
What this means for you:
● No rust marks or coating fragments contaminating your hydraulic oil
● Longer oil service life --- fewer oil changes and lower maintenance costs
● Reduced seal and component wear from particle contamination
● Cleaner, more stable hydraulic system operation over time
Hydraulic systems depend on reliable sealing to maintain pressure and efficiency. Even microscopic surface irregularities can cause seal wear, oil leakage, and gradual pressure loss. Our Hydraulic Driven Motor Shafts are manufactured to precision standards specifically for high-pressure sealing applications.
Sealing surface precision specifications:
| Parameter | Value | Why It Matters |
|---|---|---|
| Sealing Section Tolerance | IT5 grade | Ensures exact fit with oil seals and combined sealing rings |
| Surface Roughness (sealing) | Ra 0.05 ~ 0.2 μm | Prevents premature seal wear caused by rough surfaces |
| Roundness & Cylindricity | ≤ 0.003 mm | Uniform seal contact around the full circumference |
| Outer Diameter Tolerance | h7 / h6 | Precise mating with bearings and seal assemblies |
| Shaft Shoulder Positioning | ≤ 0.008 mm | Accurate axial positioning for proper seal compression |
| Friction Coefficient | ≤ 0.12 | Reduces friction loss and heat generation at sealing interfaces |
Assembly benefits:
● Seamless cooperation with hydraulic oil seals and combined sealing rings
● No repeated adjustments needed during assembly --- faster, more efficient production
● Compatible with both direct connection and flange-type concentric assembly methods
● C1-C2 chamfer design balances assembly safety and convenience
Complete technical specifications for Guanshuo Hydraulic Driven Motor Shafts. All parameters can be adjusted to match your specific hydraulic system requirements.
| Category | Parameter | Standard Value |
|---|---|---|
| Material & Hardness | Tempered Hardness | HB 260 ~ 300 |
| Surface Hardness | HRC 58 ~ 62 | |
| Core Toughness | ≥ 90 J/cm² | |
| Shaft Extension Hardness | HRC 45 ~ 55 | |
| Hardening Depth | Hardened Zone Depth | 1.5 ~ 3.0 mm |
| Process | Quenching / Carburizing / Nitriding | |
| Dimensional Tolerance | Outer Diameter Tolerance | h7 / h6 |
| Sealing Section Tolerance | IT5 grade | |
| Shaft Shoulder Positioning | ≤ 0.008 mm | |
| Surface Quality | Surface Roughness (general) | Ra 0.4 ~ 0.8 μm |
| Surface Roughness (sealing) | Ra 0.05 ~ 0.2 μm | |
| Roundness & Cylindricity | ≤ 0.003 mm | |
| Friction & Wear | Friction Coefficient | ≤ 0.12 |
| Surface Treatment | Hard coating + Mirror polishing | |
| Geometry | Chamfer | C1 ~ C2 |
| Diameter / Length | - |
Hydraulic systems use various connection methods across different equipment types. Our motor shafts support multiple shaft end configurations and assembly approaches to match your specific setup.
Shaft End Connection Types:
● Flat Key --- Simple, reliable, widely used for general hydraulic pumps and motors
● Spline Key --- Higher torque capacity, better alignment for heavy-load applications
● Tapered Surface --- Self-centering, easy assembly/disassembly for certain hydraulic motor designs
● Custom Features --- Threads, grooves, or other features per your drawing requirements
Assembly Methods Supported:
● Direct connection assembly --- shaft directly coupled to hydraulic component
● Flange-type concentric assembly --- mounted via flange for precise alignment
● Other assembly configurations --- designed to your specifications
Compatible Hydraulic Components:
● Hydraulic pumps
● Hydraulic motors
● Hydraulic controllers
● Hydraulic reducers
Not sure which connection type you need? Send us your equipment specifications and we'll recommend the optimal configuration.
Our motor shafts serve a wide range of hydraulic drive applications across industries where reliable performance under high pressure is essential.
Common Applications:
● Hydraulic power units and systems
● Construction machinery hydraulic systems
● Industrial hydraulic equipment and presses
● Injection molding machine hydraulic drives
● Agricultural machinery hydraulic systems
● Marine hydraulic equipment
● Mining and metallurgy hydraulic systems
Typical Operating Conditions:
● High-pressure start-stop and frequent cycling
● Alternating load and shock conditions
● Hydraulic oil media environment
Reliability matters in hydraulic systems --- a single shaft failure can cause costly downtime and system damage. Every Guanshuo Hydraulic Driven Motor Shaft undergoes comprehensive quality control at every production stage.
Incoming Material Control:
● Raw material certification verification
● Material composition and hardness testing
● Traceable material batches
In-Process Quality Checks:
● Dimensional inspection at each production stage
● Hardness verification after each heat treatment step
● Surface roughness measurement on critical surfaces
● Hardened depth validation
Final Inspection:
● Full dimensional verification including sealing surfaces
● Roundness and cylindricity measurement
● Surface quality and coating integrity inspection
● Shaft shoulder positioning accuracy check
Inspection Equipment:
● Full-automatic optical inspection system
● Surface finish gauges (profilometers)
● Hardness testers
● Cylindricity measuring instruments
● Two-dimensional projectors
Company Certifications:
● ISO 9001:2015 Quality Management System
● National High-Tech Enterprise (China)
● 11 Patented Technologies in Shaft Manufacturing
Our commitment doesn't end when the Hydraulic Driven Motor Shaft ships. We provide ongoing support to ensure your hydraulic systems run reliably long after installation.
Warranty Coverage:
● Covers manufacturing defects and material issues
● Warranty claim process: Contact our team with issue details → Technical evaluation → Replacement or repair as applicable
Technical Support:
● Installation guidance and assembly troubleshooting
● Material and surface treatment consultation for specific hydraulic conditions
● Failure analysis and root cause investigation
● Design optimization support for performance improvement
Responsive Service:
● Technical inquiries responded to within 24 business hours
● Emergency support for critical application issues
● Direct communication with engineering team for complex questions
Long-Term Partnership:
● Design iteration support as your hydraulic products evolve
● Continuous quality improvement based on field feedback
● Cost optimization suggestions for volume production
Quick answers to common questions about our Hydraulic Driven Motor Shafts. Can't find what you're looking for? Contact our team directly.
No. The shaft goes through multiple processes: quenching & tempering, plus surface quenching, carburizing, or nitriding. Surface hardness reaches HRC 58-62 with a tough core (≥90 J/cm²), so it handles instantaneous high-pressure shocks and alternating loads. The hardened zone is deep enough (1.5-3.0mm) that even with high-pressure start-stops and frequent operation, there's no deformation or fracture.
Yes --- this is a core design feature for hydraulic applications. The shaft features anti-corrosion and wear-resistant structure with hard coating on sealing and mating surfaces. This prevents shaft rusting and coating peeling, so no rust particles or coating fragments enter the hydraulic oil. Cleaner oil means fewer oil changes, less component wear, and more stable system operation.
Sealing section tolerance meets IT5 grade with surface roughness Ra 0.05-0.2 μm. Roundness and cylindricity are ≤ 0.003 mm, and shaft shoulder positioning accuracy is ≤ 0.008 mm. All parameters are controlled to meet hydraulic system high-pressure sealing and precise assembly standards.
It works with most mainstream hydraulic equipment including hydraulic pumps, hydraulic motors, and hydraulic reducers. Both direct connection and flange-type concentric assembly are supported. The shaft end can be customized with flat key, spline key, or tapered surface structures. Provide your specific equipment specs and assembly requirements and we'll match it precisely.
We offer flat key, spline key, and tapered surface connections as standard options. Custom features like threads, grooves, or special profiles can also be added per your drawings. Tell us what hydraulic component you're connecting to and we'll recommend the best configuration.
For a fast and accurate quote, please provide: 2D drawings (or basic dimensions), hydraulic equipment type and application, working pressure and load conditions, connection type needed, and estimated quantity.
We are ISO 9001:2015 certified and a National High-Tech Enterprise with 11 patented technologies. Every shaft undergoes multi-stage quality inspection including dimensional checks, hardness verification, and surface quality inspection before shipment.
Sample lead time: 1--3 working days for stock samples, 7--12 days for custom machined samples, and 12--18 days for items with heat treatment or special surface finish.
Production lead time: 15--25 working days for bulk orders, depending on quantity and complexity. Expedited service available upon request.
Hydraulic equipment manufacturers partner with Guanshuo because we don't just sell motor shafts --- we engineer solutions for hydraulic system challenges. Here's what you get when you work with us:
✓ Purpose-built for hydraulics --- Not repurposed standard motor shafts. Every design decision considers high-pressure impact, oil compatibility, and sealing requirements.
✓ Engineering support from day one --- Our team helps with material selection, heat treatment optimization, and connection design before production even starts.
✓ Consistent quality you can count on --- ISO 9001 certified, 11 patented technologies, and multi-stage inspection on every shaft we manufacture.
Contact our hydraulic shaft team:
Phone / WhatsApp: +86-15990709753
Response time: Within 24 business hours
Send us these for the fastest quotation:
2D drawings (or basic dimensions) • Hydraulic equipment type • Working pressure and load conditions • Connection type needed • Estimated quantity • Target timeline
