Not all pneumatic systems operate the same way --- some run dry, some carry oil‑water mist, and all face high‑frequency start‑stop impacts. Manufactured in Ningbo, China by Ningbo Guanshuo Precision Hardware Co., Ltd., our Pneumatic Drive Motor Shaft is available in multiple material and coating configurations to match your specific working conditions. From standard dry‑air systems to oil‑water mixed corrosive environments, there is a configuration built for your application.

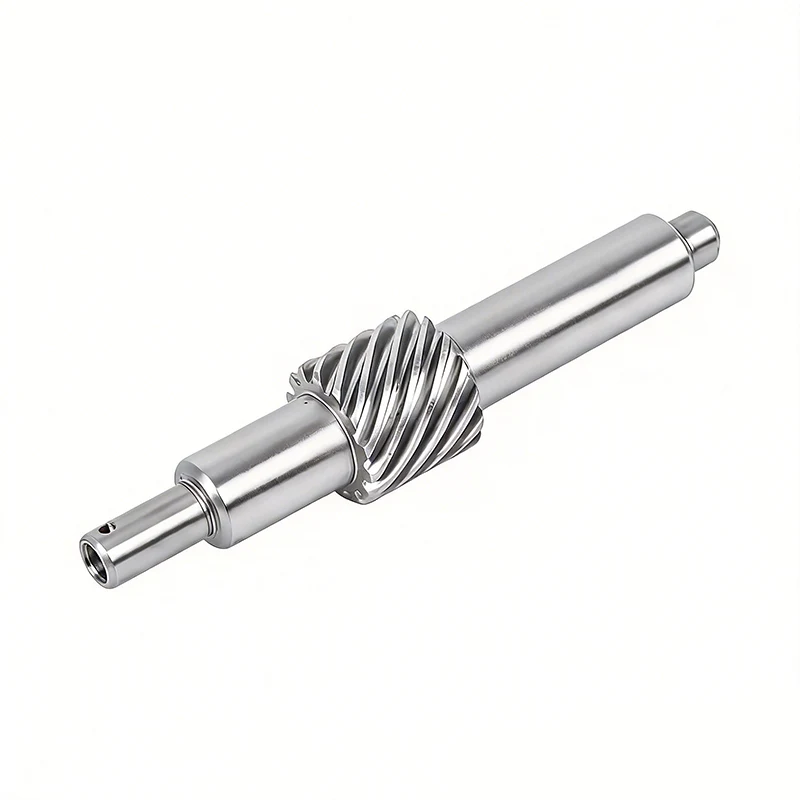

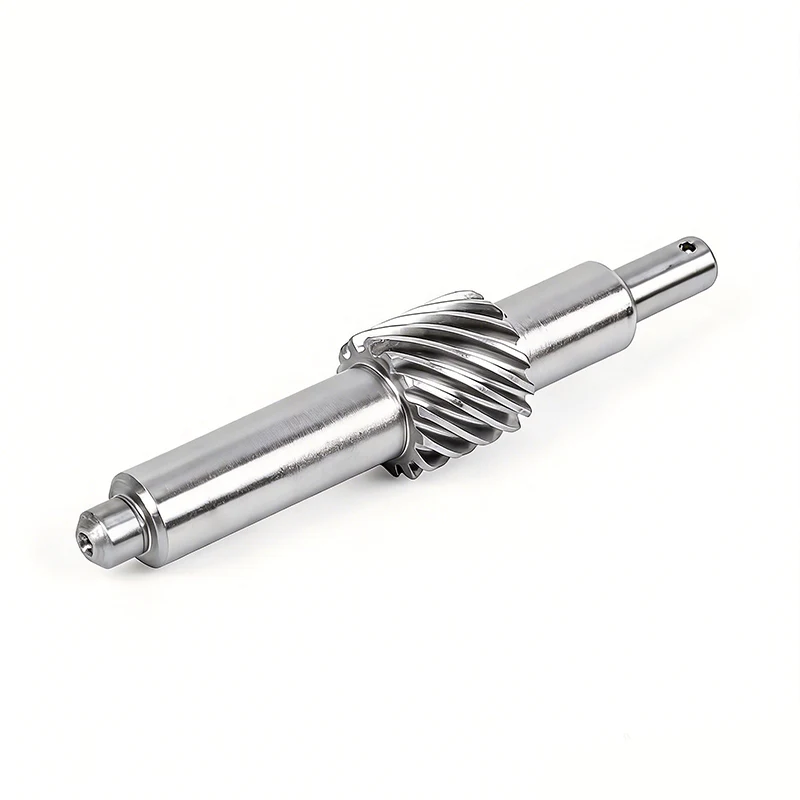

Selecting the right Pneumatic Drive Motor Shaft starts with understanding your working conditions. Different pneumatic environments have very different corrosion, load, and sealing requirements --- and using the wrong configuration leads to premature failure.
| Condition Type | Characteristics | Key Shaft Requirements |
|---|---|---|
| Dry Air Systems | Clean, dry compressed air; minimal moisture | Basic corrosion resistance; good impact resistance; standard sealing |
| Oil‑Water Mixed | Compressed air carries oil and water mist; cavitation risk | Enhanced corrosion protection; cavitation resistance; precision sealing |
| High‑Corrosion | Humid, chemical‑laden, or outdoor pneumatic systems | Stainless steel base material; maximum corrosion resistance |
Not sure which type? Send us your working condition description and our engineers will recommend the optimal material and surface treatment combination.
We offer four standard material options for our Pneumatic Drive Motor Shaft, each suited to different corrosion levels and load requirements.
| Material | Corrosion Resistance | Strength & Impact | Best For |
|---|---|---|---|
| 42CrMo Alloy Steel | Basic (with coating) | High strength, excellent toughness | Dry or lightly oil‑misted systems; medium‑to‑heavy loads |
| 20CrMnTi | Basic (with coating) | Good after carburizing & quenching | General‑purpose pneumatic motors; cost‑effective option |
| 304 Stainless Steel | Good | Moderate strength | Oil‑water mixed systems; moderate corrosion environments |
| 316 Stainless Steel | Excellent | Moderate strength | High‑corrosion environments; chemical or outdoor pneumatic systems |
Not sure which material to choose? Send us your working condition description and our engineers will recommend the optimal material and surface treatment combination.
Corrosion is a top failure cause in pneumatic systems --- compressed air often carries oil, water, and contaminants that attack shaft surfaces. Our Pneumatic Drive Motor Shaft is engineered with targeted corrosion protection to handle dry, wet, and mixed pneumatic conditions.
| Feature | Description |
|---|---|
| Special Anti‑Corrosion Coating | Applied to alloy steel shafts for oil‑water cavitation resistance in compressed air systems |
| Stainless Steel Base Options | 304 or 316 stainless steel for higher corrosion environments |
| Oil & Lubricant Resistant | Compatible with hydraulic oil and lubricating oil commonly found in pneumatic systems |
● Shafts last longer in oil‑water mixed pneumatic conditions
● No rust or surface degradation contaminating your pneumatic system
● Consistent performance across dry and wet operating cycles
● Meets anti‑corrosion procurement requirements for dry‑wet mixed working conditions
Pneumatic systems are known for rapid cycling and instantaneous impact loads. Standard motor shafts fatigue quickly under these conditions. Our Pneumatic Drive Motor Shaft is heat‑treated to deliver the core toughness needed to survive millions of start‑stop cycles.
● Quenching & Tempering --- Base heat treatment for overall structural strength
● Carburizing & Quenching --- Creates a hard surface layer while maintaining a tough, shock‑absorbing core
● Strong Core Toughness --- Withstands instantaneous impact loads from pneumatic actuation
● Handles the instantaneous impact of pneumatic drive activation
● Resists fatigue cracking from millions of start‑stop cycles
● Maintains performance even under high‑frequency operation
● Meets anti‑impact procurement requirements for pneumatic equipment
Reliable sealing is essential in pneumatic systems to prevent air leakage and maintain pressure. Our Pneumatic Drive Motor Shaft is manufactured to precision standards that ensure seamless fit with pneumatic seals and oil seals.
| Parameter | Value | Sealing Benefit |
|---|---|---|
| Seal Fit Section Tolerance | IT5 - IT6 | Precise fit with pneumatic sealing rings |
| Surface Roughness (sealing) | Ra 0.1 ~ 0.4 μm | Smooth surface prevents seal wear |
| Roundness | ≤ 0.005 mm | Uniform seal contact around circumference |
| Cylindricity | ≤ 0.008 mm | Consistent sealing along seal length |
| Outer Diameter Tolerance | h7 | Accurate fit with bearings and seals |
● Seamless fit with pneumatic sealing rings and oil seals
● Meets assembly standards for high‑sealing procurement requirements
● Reduces assembly time and adjustment needs
● Ensures consistent sealing performance across production batches
Our Pneumatic Drive Motor Shaft is fully configurable to match your specific working conditions and equipment requirements. Below are the standard configuration options --- custom specifications are also available.
| Category | Standard Options | Selection Guidance |
|---|---|---|
| Base Material | 42CrMo / 20CrMnTi / 304 SS / 316 SS | Alloy for dry; 304 for oil‑water; 316 for high‑corrosion |
| Surface Treatment | Standard coating / Enhanced coating / Polished (SS) | Match coating to corrosion level; SS can be used without coating |
| Heat Treatment | Quenching & tempering / Carburizing & quenching / Combined | Carburizing for hard surface + tough core; essential for high‑impact |
| Outer Diameter Tolerance | h7 (standard) / h6 / h5 (precision) | h7 for general; tighter for high‑sealing |
| Seal Fit Section | IT5‑IT6 tolerance / Ra 0.1‑0.4 μm | IT5 for critical sealing; IT6 for standard seals |
| Geometric Precision | Roundness ≤0.005 / Cylindricity ≤0.008 / Runout ≤0.005‑0.015 | Higher precision for high‑speed or high‑sealing systems |
| Shaft End Features | Internal thread M5‑M12 / Keyways / flats / Custom profiles | Specify based on your equipment connection |
| Surface Roughness | Ra 0.4‑0.8 μm (general) / Ra 0.1‑0.4 μm (sealing) | Smoother for sealing surfaces; standard for non‑critical areas |
Not sure which configuration to choose? Our application engineers can recommend the optimal setup based on your working conditions and performance requirements.
Our Pneumatic Drive Motor Shaft serves across a wide range of pneumatic applications --- each with different corrosion, load, and sealing requirements. Below are the most common scenarios and the recommended configuration for each.
Scenario: Clean, dry compressed air in controlled factory environments. Minimal moisture, no significant corrosive elements.
Key challenges: High‑frequency start‑stop impact; long service life; cost efficiency.
Recommended configuration: 42CrMo or 20CrMnTi alloy steel, Q&T + carburizing, standard coating, IT5‑IT6 sealing.
Typical equipment: Factory automation actuators, standard pneumatic motors, assembly line cylinders.
Scenario: Compressed air carries oil mist and water vapor --- common in many industrial pneumatic systems with lubrication and incomplete air drying.
Key challenges: Oil‑water cavitation corrosion; coating peeling risk; seal compatibility with oil‑laden air.
Recommended configuration: 304 stainless steel (or 42CrMo with enhanced coating), special anti‑corrosion layer, IT5‑IT6 precision seal, roundness ≤0.005mm.
Typical equipment: Pneumatic motors with oil lubrication, industrial pneumatic tools, workshop compressed air systems.
Scenario: Outdoor pneumatic equipment, chemical industry systems, or humid coastal environments --- corrosion is primary concern.
Key challenges: High humidity and chemical exposure; rust and surface degradation; long‑term reliability in harsh conditions.
Recommended configuration: 316 stainless steel for maximum resistance, polished finish, precision ground sealing, material certificates.
Typical equipment: Outdoor actuators, chemical processing pneumatic systems, marine equipment.
Scenario: Pneumatic manipulators, high‑speed pick‑and‑place systems, automation equipment --- shaft cycles hundreds or thousands of times per day.
Key challenges: Fatigue from repeated impact; wear at connection points; consistent performance over millions of cycles.
Recommended configuration: 42CrMo alloy steel for strength‑toughness balance, Q&T + carburizing, engineered core toughness, hardened wear‑resistant surface.
Typical equipment: Pneumatic manipulators, high‑speed pick‑and‑place arms, automated assembly systems.
Not sure which scenario fits your application? Contact our pneumatic application engineers --- we'll help you select the optimal configuration based on your specific working conditions.
Every Guanshuo Pneumatic Drive Motor Shaft undergoes rigorous quality control to ensure reliable performance in your pneumatic system.
● Material certification verification (alloy steel and stainless steel)
● Chemical composition testing
● Hardness and microstructure checks
● Dimensional inspection at each production stage
● Hardness verification after heat treatment
● Surface roughness measurement
● Coating thickness and adhesion testing (coated shafts)
● Full dimensional verification including sealing surfaces
● Roundness and cylindricity measurement
● Surface quality and coating integrity inspection
● Thread gauging (shaft end internal threads)
● Full‑automatic optical inspection system
● Surface finish gauges
● Hardness testers
● Cylindricity measuring instruments
● Thread gauges
● ISO 9001:2015 Quality Management System
● National High‑Tech Enterprise
● 11 Patented Technologies
A: It depends on your working conditions. For dry air systems, 42CrMo or 20CrMnTi with anti‑corrosion coating works well. For oil‑water mixed conditions, 304 stainless steel is a good choice. For high‑corrosion or chemical environments, go with 316 stainless steel. Send us your condition details and we'll recommend the optimal material and coating combination.
A: Yes. Alloy steel shafts come with a special anti‑corrosion coating that resists oil‑water cavitation in compressed air and mild corrosion from hydraulic oil or lubricating oil. For more severe conditions, stainless steel options (304 or 316) provide even better corrosion resistance.
A: The seal fit section tolerance reaches IT5‑IT6 grade with surface roughness Ra 0.1‑0.4 μm. Roundness is ≤0.005 mm and cylindricity ≤0.008 mm. These specs ensure seamless fit with pneumatic sealing rings and oil seals, meeting high‑sealing assembly standards.
A: Standard shaft end internal threads range from M5 to M12. We can also add custom features like keyways, flats, or special profiles per your drawing requirements. Tell us what you need to connect to and we'll design the shaft end accordingly.
A: Yes, material certificates are provided with each batch --- this is especially important for stainless steel shafts where material composition directly affects corrosion performance. Dimensional inspection reports, hardness test reports, and coating thickness reports are also available upon request.
A: Absolutely. Just describe your working conditions --- air quality, moisture/oil content, cycling frequency, load type --- and our engineers will recommend the optimal material and surface treatment configuration for your specific pneumatic application.
Pneumatic system configuration is not one‑size‑fits‑all. The right material, coating, and tolerance choices depend entirely on your working conditions. Our application engineers help you get it right the first time --- no overpaying for unnecessary features, no underspecifying and risking early failure.
Our engineers can help you with:
● Material selection based on your corrosion and load requirements
● Surface treatment and coating recommendations
● Tolerance and sealing precision specification
● Shaft end feature design for your specific equipment
● Cost optimization without compromising performance
Reach our application engineering team:
● Phone / WhatsApp: +86‑15990709753
● Response time: Within 24 business hours for technical inquiries
To speed up your consultation, have ready:
● Working condition description (air quality, moisture, temperature)
● Load and cycling frequency
● Required shaft dimensions
● Connection type needed
● Estimated annual quantity
