The core technology of the motor shaft lies in its involute spline structure. Spline connections are commonly used in mechanical transmission to transmit torque and enable axial movement, and the involute spline is the most superior tooth profile among all spline types.
Unlike rectangular splines (with rectangular tooth profiles), the involute spline has an involute curve tooth profile - the same as gear teeth. This design brings two fundamental advantages: automatic centering and multi-tooth load sharing.
For automatic centering, during assembly of the motor shaft, the spline tooth surfaces are naturally guided along the involute curve, allowing the shaft and mating part to self-align without additional adjustment, achieving high coaxiality. This feature greatly reduces assembly difficulty while ensuring higher transmission accuracy. For multi-tooth load sharing, the involute spline tooth profile design ensures that loads are evenly distributed across multiple teeth, avoiding the local overloading common with rectangular splines where only one or a few teeth bear the load, significantly improving load capacity and service life.

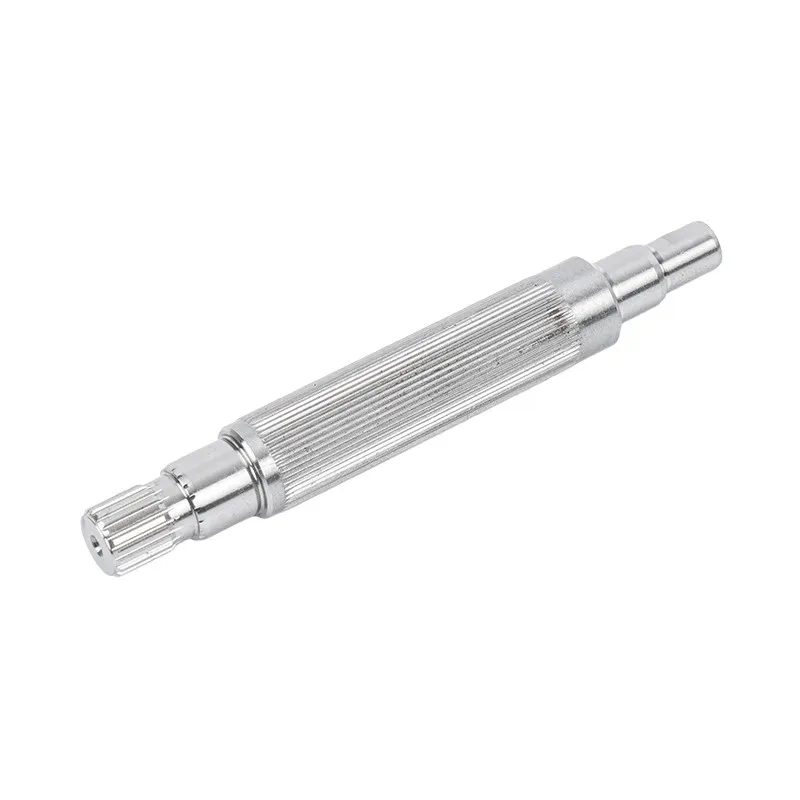

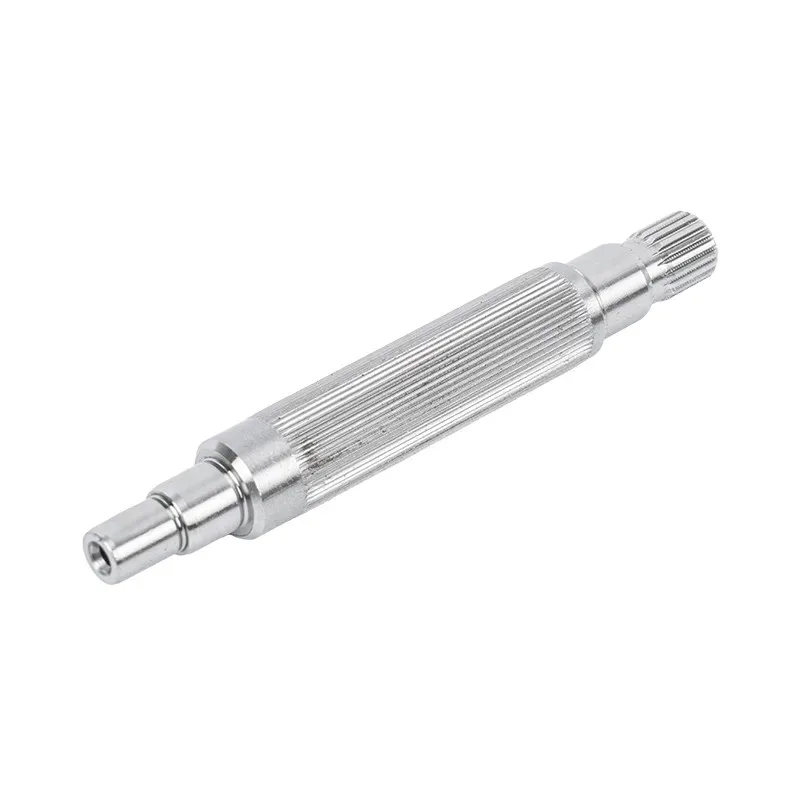

Guanshuo's Involute Spline Motor Shaft features large tooth root fillets (R0.3~R0.8), further reducing stress concentration at the tooth root, enabling the product to have longer fatigue life under impact loads and alternating stress.
Guanshuo's motor shaft offers the following core advantages, making it the preferred solution for high-speed and high-precision transmission applications:
1. Automatic Centering, Higher Coaxiality
The involute tooth profile of the product automatically centers during assembly, achieving higher coaxiality between the shaft and mating part and smoother transmission. Compared with the precise fit required for rectangular splines to achieve alignment, the automatic centering feature of involute splines greatly reduces assembly difficulty while ensuring higher transmission accuracy.
2. Multi-Tooth Load Sharing, Strong Heavy-Load Capacity
The product distributes loads evenly across multiple teeth, with significantly better load capacity than rectangular splines. The larger tooth root fillet (R0.3~R0.8) reduces stress concentration, providing stronger impact resistance, fatigue resistance and anti-eccentric load capacity. It operates more stably under frequent forward and reverse rotation and heavy load impact conditions, with a service life generally longer than rectangular splines.
3. High Speed, Low Noise, High Transmission Efficiency
The product features smooth tooth profiles and minimal meshing impact, with excellent high-speed performance, high transmission efficiency and low heat generation. Vibration and noise control are superior to rectangular splines, making it particularly suitable for medium and high-speed rotating equipment and the preferred solution for high-speed motors and precision spindles.
4. High Processing Accuracy, Good Interchangeability
Guanshuo's Involute Spline Motor Shaft achieves spline equalization error ≤0.015~0.03mm, symmetry ≤0.02mm, and tooth surface roughness Ra≤0.8~1.6μm. High-precision processing ensures good interchangeability, facilitating equipment maintenance and spare parts management.
5. Comprehensive Quality Control System
Guanshuo has passed ISO9001 quality management system certification, implementing full quality control from raw materials to finished products. The company holds 11 patented technologies covering bearing sealing structures, combined motor shaft structures, bearing support structures and other fields.
| Parameter | Specification Range |
|---|---|
| Spline Equalization Error | ≤0.015~0.03 mm |
| Spline Symmetry | ≤0.02 mm |
| Tooth Surface Roughness | Ra ≤ 0.8~1.6 μm |
| Tooth Root Fillet | R0.3~R0.8 |
With its core features of automatic centering, high coaxiality, smooth transmission, multi-tooth load bearing, strong heavy-load and impact resistance, high speed and low noise, high efficiency and long service life, the Involute Spline Motor Shaft is widely used in the following demanding scenarios:
New Energy Vehicles: Drive motor high-speed shaft applications. Involute spline automatic centering ensures transmission stability at high speeds, while multi-tooth load sharing meets high torque output requirements.
High-Speed Motors and Precision Spindles: Core transmission components for medium and high-speed rotating equipment. Smooth tooth profiles, minimal meshing impact and low heat generation make it the preferred solution for high-speed motors.
Industrial Automation: Robot joints, servo motors, precision transmission systems. High precision and good interchangeability meet the high reliability requirements of automation equipment.
Construction Machinery: Transmission shaft applications under frequent forward and reverse rotation and heavy load impact conditions. Stronger impact resistance and fatigue resistance ensure longer service life.
Machine Tools: Spindle transmission for CNC machine tools and machining centers. High coaxiality and low vibration ensure machining precision.
Guanshuo's products have covered sales regions including Guangzhou, Jiangsu, Fujian, Anhui, Shandong and other areas, and have established cooperative relationships with brands such as Goldsmiths, French Decathlon, Omron, and Yasi.
To help procurement professionals more clearly understand the technical advantages of the product, the following table provides a systematic comparison between involute splines and rectangular splines:
| Dimension | Involute Spline (Guanshuo) | Rectangular Spline |
|---|---|---|
| Centering Method | Automatic centering, tooth profile guided alignment | Requires precision fit, centering accuracy depends on machining |
| Coaxiality | High (ensured by automatic centering) | Medium (depends on clearance fit) |
| Load Distribution | Multi-tooth uniform load sharing | Few teeth bear load, prone to local overloading |
| Tooth Root Stress | Large fillet (R0.3~R0.8), low stress concentration | High stress concentration, prone to fatigue cracks |
| Impact Resistance | Strong | Weak |
| Anti-Eccentric Load Capacity | Strong | Weak |
| High-Speed Performance | Excellent (smooth tooth profile, minimal meshing impact) | Average (larger meshing impact) |
| Vibration and Noise | Low | Higher |
| Transmission Efficiency | High | Medium |
| Service Life | Long (generally longer than rectangular splines) | Shorter |
| Processing Accuracy | High (equalization error ≤0.015~0.03mm) | Medium |
| Interchangeability | Good | Average |
| Best Suitable Scenario | High-speed, high-precision, heavy-load, frequent forward-reverse | Low-speed, light-load, general transmission |
The above comparison clearly shows that the product comprehensively outperforms rectangular splines in centering accuracy, load capacity, impact resistance, high-speed performance and service life. For transmission systems pursuing high efficiency, long service life and low maintenance costs, the involute spline is the superior choice.
Guanshuo provides full-process service support for the shaft:
Sample Stage: Technical parameter customization consultation, 3D drawing collaborative design verification, free sample provision and cost optimization plans, ensuring product matching with customer equipment conditions and cost reduction requirements.
Mass Production: Full-process CNC processing quality traceability, 48-hour production progress visual feedback, ISO9001 system certification quality inspection, support for VMI inventory management and emergency order response.
After-Sales: 24-month extended warranty period, on-site diagnosis of global problems within 48 hours, free provision of process upgrade and iteration solutions, establishment of a customer equipment wear database for early warning and maintenance.
Quick Response: Inquiries and product consultations can be replied to within 24 hours.
Original Factory Manufacturing, Quality Controllable: Guanshuo is a direct manufacturer of Involute Spline Motor Shaft, with full-process control from raw materials to finished products.
Advanced Equipment, Sufficient Production Capacity: A team of over 50 employees, 26 CNC cylindrical grinders, 6 hobbing machines and other advanced equipment ensure on-time delivery of large-volume orders.
Deep Technical Expertise, Patent Support: 11 patented technologies cover multiple core technical aspects of the product and related products.
Complete Certifications, Sound Systems: ISO9001 certification system runs through the entire process of R&D, production and sales.
Comprehensive Services, Worry-Free After-Sales: Full lifecycle service support from samples to mass production, from pre-sales to after-sales.
A: Two core advantages: automatic centering - the tooth profile naturally guides alignment during assembly, achieving higher coaxiality; and multi-tooth load sharing - loads are evenly distributed across multiple teeth, providing stronger load capacity, better impact resistance and longer service life.
A: Tooth surface roughness can reach Ra≤0.8~1.6μm, spline equalization error ≤0.015~0.03mm, symmetry ≤0.02mm, and tooth root fillet R0.3~R0.8.
A: CNC hobbing or milling is used, combined with high-precision CNC cylindrical grinders for outer circle finishing, with the entire process controlled under the ISO9001 system.
A: Suitable for high-speed, high-precision, medium to heavy-load, frequent forward-reverse rotation, and impact load transmission scenarios, including new energy vehicle drive motors, high-speed motors, precision spindles, and industrial automation equipment.
A: 24-month extended warranty, global problem diagnosis within 48 hours, free process upgrade solutions, and inquiry replies within 24 hours.
A: Submit an inquiry via the official website or email. Reply within 24 hours, and the quotation clearly indicates key parameters.
A: High-precision processing ensures good interchangeability, facilitating equipment maintenance and spare parts management, and reducing maintenance costs.
