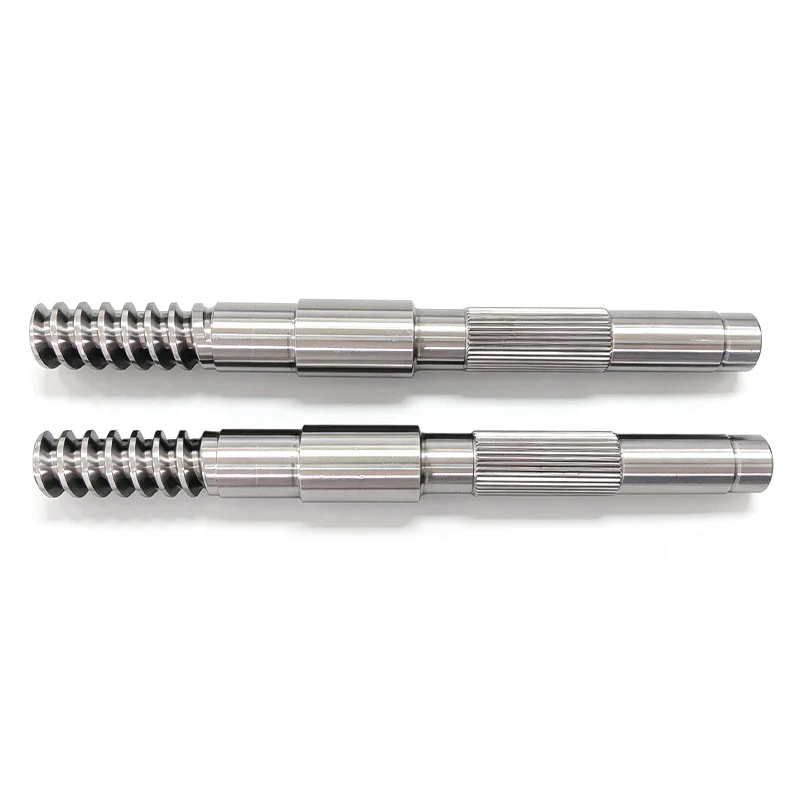

CNC Machined Worm Output Shaft

Guanshuo applies professional precision hardware processing experience to produce motor shafts, rotating shafts and related components. The company was established in 2016 in Ningbo, Zhejiang, China, and focuses on the research and manufacturing of high-precision motor shaft cores. It has obtained ISO9001 quality management certification and owns 11 patent technologies.The CNC Machined Worm Output Shaft is a key transmission component used to transfer motor power to connected drive mechanisms. Its worm structure enables smooth engagement with matching gears, while the shaft body provides mechanical support during continuous operation. The product is manufactured through precision machining processes to control dimensional consistency, surface quality and fitting accuracy.

Key Features

1. Precision Worm Machining

The worm thread section is processed with controlled machining accuracy to achieve smooth gear engagement and stable torque transmission. Proper thread forming helps reduce vibration and operating noise during equipment running.

2. High Strength Material

The standard material is 40Cr alloy steel, which provides suitable mechanical strength and wear resistance for transmission components. The material selection supports applications requiring continuous load transmission.

3. Customized Structure

Dimensions, worm parameters, shaft structures and related machining requirements can be adjusted according to drawings or physical samples. This allows the CNC Machined Worm Output Shaft to match different motor and gearbox designs.

Technical Data

Code	GS-619
Material	40Cr
Spec.	22X202

Manufacturing Process

The production process covers multiple precision machining stages to maintain dimensional stability and product consistency.

1. Raw Material Preparation

40Cr alloy steel material is selected according to product requirements and prepared for further machining operations.

2. CNC Machining

Turning, worm thread forming, spline processing and grinding processes are applied according to shaft structure requirements. CNC equipment helps maintain stable processing quality during production.

3. Inspection Control

Guanshuo uses professional inspection equipment including hardness testers, two-dimensional projectors, surface finish gauges, gear testing centers and cylindricity gauges to check product quality.

Production Capability

Guanshuo Precision operates a precision hardware manufacturing facility with more than 50 employees. The factory includes engineering and technical personnel, quality inspection staff and various CNC processing equipment.

1. Machining Equipment

Production equipment includes CNC machining centers, turning and milling combined machines, high-precision CNC cylindrical grinding equipment, hobbing machines, automatic optical inspection equipment and other CNC machines.

2. Quality Equipment

The inspection system includes hardness testing instruments, two-dimensional projectors, surface roughness testers, gear testing centers and cylindricity measuring equipment.

3. Industry Experience

Guanshuo provides precision shaft solutions for industries including new energy vehicles, industrial automation and home appliances.

The CNC Machined Worm Output Shaft can be applied in various mechanical transmission systems requiring accurate power transfer and stable operation.

1. Gear reduction motor systems

2. Industrial drive equipment

3. Automation machinery

4. Motor assembly applications

5. Mechanical transmission equipment

Product Comparison

Item	CNC Machined Worm Output Shaft	Standard Shaft
Transmission Structure	Worm machining structure for gear engagement	Mainly straight shaft transmission
Machining Requirement	Requires precise worm profile processing	Usually simpler turning process
Application	Motor and reduction drive systems	General shaft support applications

Service Support

Guanshuo provides customized shaft manufacturing services based on customer drawings, samples and technical specifications. The production process integrates machining capability, quality inspection and engineering communication to support different precision shaft requirements.

With experience in precision hardware processing and customized shaft solutions, Guanshuo continues to develop high-precision components for industrial applications.
