Guanshuo Precision Hardware Co., Ltd. introduces the Tapered Motor Shaft, a high-precision transmission shaft component specifically designed for high-torque transmission and heavy-load working conditions. As a leading manufacturer and supplier of precision motor shafts in China, Guanshuo has been deeply engaged in the precision hardware processing field for over a decade. It is a national-level high-tech enterprise, has passed ISO9001 quality management system certification, and holds 11 patent technologies. The product adopts a keyless conical surface fit design, achieving torque transmission through axial pre-tightening without the need for keyways or splines. Installation and disassembly are efficient and convenient, making it particularly suitable for heavy-load transmission scenarios that require frequent maintenance.
The Tapered Motor Shaft is a precision transmission shaft that transmits torque through conical surface friction, with the core function of achieving high-reliability power transmission under keyless connection conditions. Its conical surface fit structure replaces traditional key connection methods, eliminating stress concentration points and enabling more uniform load distribution. This product is widely used in industrial automation equipment, new energy vehicle drive systems, household appliance compressors, pump and valve components, and medical equipment, where transmission precision and reliability are critical. For transmission systems requiring frequent start-stop, forward-reverse operation, or resistance to impact loads, the shaft is an ideal selection solution.
Guanshuo's shaft incorporates multiple technical advantages in design and manufacturing, ensuring excellent performance in heavy-load transmission scenarios:
1. Keyless Conical Surface Fit for More Reliable Torque Transmission
The shaft abandons traditional keyway structures and uses conical surface and conical sleeve cooperation to achieve friction locking. The conical surface contact rate is ≥90%, ensuring sufficient contact area, and the torque transmission capacity is significantly superior to ordinary key connections. Since there is no keyway to weaken the shaft body strength, the overall rigidity and fatigue resistance of the shaft are also improved.
2. Efficient and Convenient Installation and Disassembly
The conical surface fit can be installed simply through axial pre-tightening, without the need for hot assembly, cold assembly, or specialized press-fitting equipment. For disassembly, simply loosen the pre-tightening nut to separate the conical surfaces, greatly reducing downtime for equipment maintenance and component replacement. For application scenarios requiring regular inspection or frequent replacement of transmission components, this feature significantly reduces maintenance costs and labor hours.
3. High Coaxiality and Precision Fit
Guanshuo is equipped with high-precision CNC cylindrical grinding equipment and fully automatic optical inspection instruments, ensuring that the Tapered Motor Shaft's coaxiality is controlled within ≤0.01mm. This level of precision meets the stringent requirements of precision transmission systems for radial runout and concentricity, effectively reducing vibration and noise during transmission and extending the service life of bearings and seals.
4. Excellent Impact Resistance and Overload Capacity
The torque transmission method through conical surface friction enables uniform load distribution along the conical surface, avoiding the stress concentration problem on the key side in key connections. When subjected to impact loads or instantaneous overloads, the shaft demonstrates superior reliability and durability, making it suitable for high-impact working conditions such as crushing equipment, conveying machinery, and hoisting devices.
| Parameter | Specification Range |
|---|---|
| Taper Tolerance | AT7 ～ AT9 |
| Radial Runout | ≤0.005 ～ 0.02 mm |
| Surface Roughness | Ra0.8 ～ Ra1.6 |
| Conical Surface Contact Rate | ≥90% |
| Coaxiality | ≤0.01 mm |
The above technical parameters can be customized according to specific application requirements. Guanshuo has over 60 ordinary CNC machines and 26 CNC cylindrical grinders, providing flexible production capacity to meet batch orders of different precision levels and size specifications.
Guanshuo's shaft has been verified and applied in multiple industry sectors:
Industrial Automation Equipment --- Suitable for robot joints, CNC machine tool spindles, automated assembly lines, and other scenarios with high requirements for transmission precision and response speed.
New Energy Vehicle Drive Systems --- As a core transmission component of drive motors, the keyless design of the shaft can withstand high torque impacts during vehicle start-stop and acceleration.
Household Appliances and Compressors --- In equipment such as air conditioning compressors and refrigerator compressors that frequently start and stop, the quick assembly and disassembly feature of the conical surface fit significantly improves production and maintenance efficiency.
Pump, Valve, and Water Treatment Equipment --- The high coaxiality of the shaft ensures smooth pump operation, reduces seal wear, and extends overall equipment life.
Medical Equipment Accessories --- Guanshuo's product line covers precision medical equipment accessories, and the high precision and reliability of the Tapered Motor Shaft meet the stringent requirements of medical devices for transmission components.

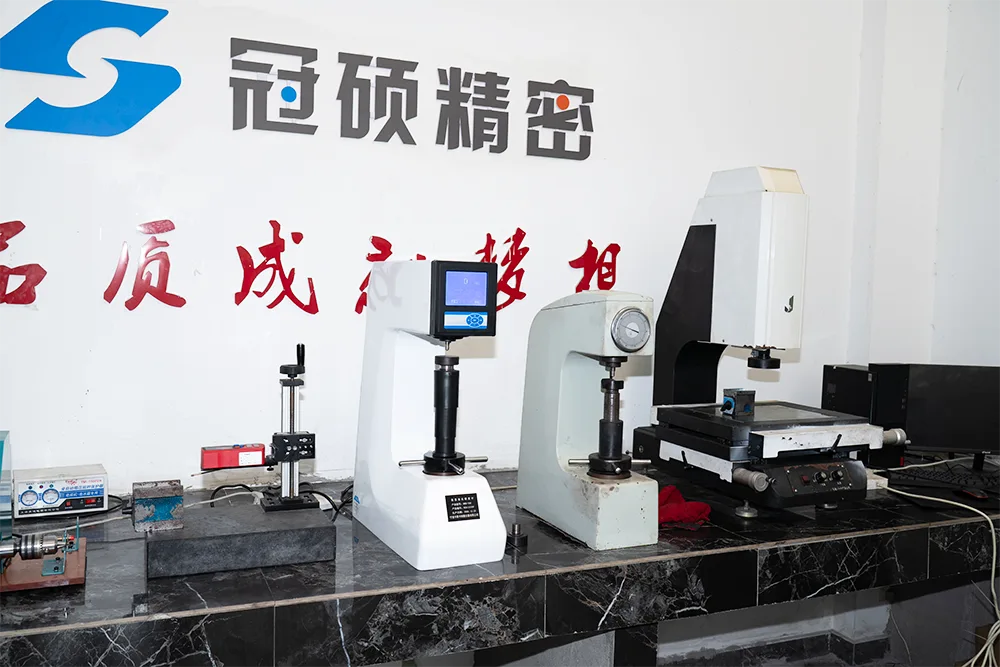

Guanshuo Precision Hardware Co., Ltd. has passed ISO9001 quality management system certification and implements full-process quality control from raw material incoming to finished product shipment. The company has an independent quality department (6 full-time quality inspectors) and comprehensive inspection equipment, including hardness testers, two-dimensional projectors, surface roughness gauges, gear testing centers, cylindricity gauges, and more. Additionally, Guanshuo holds 11 patented technologies related to motor shafts, covering innovative designs such as bearing sealing structures, combined motor shaft structures, and bearing installation positioning shafts. These patented technologies provide a solid technical foundation for the performance optimization and customized development of the shaft.
Guanshuo provides full-chain customized services from drawing review, material selection, process design, to mass production. The manufacturing process of the shaft includes:
1. Material Inspection and Cutting --- Strictly select high-quality alloy steel or customized materials to ensure material composition and mechanical properties meet requirements.
2. CNC Precision Turning --- Use CNC lathes to complete rough and semi-finish machining of the shaft body, with grinding allowance reserved.
3. Taper Grinding --- Use high-precision CNC cylindrical grinders for precision grinding of the conical surface, ensuring taper tolerance and surface roughness meet design requirements.
4. Inspection and Verification --- Use fully automatic optical inspection equipment, cylindricity gauges, and other instruments to conduct 100% inspection of key dimensions such as taper, coaxiality, and roundness.
5. Cleaning and Rust-Proof Packaging --- After cleaning treatment, finished products are packaged with rust prevention to ensure quality stability during transportation and storage.
As a professional manufacturer and supplier of Tapered Motor Shaft in China, Guanshuo Precision Hardware Co., Ltd. has earned the trust of global customers through the following advantages:
● Over a decade of precision machining experience --- Since its establishment in 2016, the company has consistently focused on the R&D and manufacturing of high-precision motor shaft cores.
● Advanced production equipment --- The company owns 26 CNC cylindrical grinders, 6 hobbing machines, 2 machining centers, 3 turning-milling combined machines, 6 high-precision centerless grinders, and over 60 other ordinary CNC machines.
● Comprehensive quality system --- ISO9001 certification, independent quality inspection team, and fully automatic optical inspection ensure consistent quality for every shaft.
● Patent technology support --- 11 motor shaft-related patents provide technical support for product innovation and customization.
● Brand cooperation experience --- Established cooperative relationships with renowned brands such as Goldsmiths, Decathlon (France), Omron, and Yasi, with product quality validated by the market.
● Fast response and delivery --- 24-hour quotation response commitment, supporting sample customization and mass production.
The shaft is a high-performance transmission shaft product launched by Guanshuo Precision Hardware Co., Ltd., combining years of precision machining experience with technological innovation. Its keyless conical surface fit design outperforms traditional key connection solutions in terms of torque transmission reliability, installation convenience, impact resistance, and coaxiality precision. It is an ideal choice for heavy-load, frequent start-stop, and high-maintenance scenarios. Backed by the ISO9001 certification system, advanced production and inspection equipment, and 11 patented technologies, Guanshuo is committed to providing global customers with high-quality, customizable shaft solutions.
A1: No. It transmits torque through conical surface friction, eliminating keyways or splines. This avoids stress concentration and performs better under impact loads.
A2: No. Installation is done by axial pre‑tightening, no hot/cold assembly or special press needed. Disassembly simply loosen the nut -- quick and easy for maintenance.
A3: Heavy‑load, frequent start‑stop, reversing, and regular maintenance scenarios. Typical uses: industrial automation, EV drives, compressors, pumps, valves, crushers, conveyors. Performs well under impact and overload.
A4: Yes. Coaxiality is controlled within ≤0.01 mm, meeting precision transmission needs. We use high‑precision CNC grinders and automatic optical inspection for consistency.
A5: Yes. We offer full‑chain customization from drawing review, material selection to process design. We can customize taper ratio, dimensions, precision grades, surface treatment, etc.
A6: ISO9001 certified, with an independent QC team and full inspection equipment. 100% inspection from raw material to finished product. We also hold 11 motor‑shaft related patents.
A7: Submit inquiry via our website or email. We respond within 24 hours with technical support and pricing. Samples and mass production are supported.
