This is a shaft product designed from the perspective of customer procurement and use pain points. It is not just a transmission part, but a systematic solution to help customers reduce costs and improve efficiency, focusing on the design concept of "making transmission simpler".
1. Cost Reduction: Reduce the purchase of additional parts such as positioning sleeves, retaining rings, and adjusting gaskets, effectively reducing the comprehensive cost of shaft system.
2. Efficiency Improvement: Assembly does not require repeated alignment and adjustment, greatly improving assembly efficiency and shortening the whole machine production cycle.
3. Reliability: Optimized stress distribution reduces shaft breakage risk, integrated sealing reduces oil leakage and dust ingress, effectively reducing equipment failure rate.
4. Worry-free: Standardized process ensures stable mass production with high dimensional consistency, simple later maintenance and replacement, no need for repeated debugging and adaptation.
With mature technology, Double Step Type Motor Shaft is our mature mass-produced shaft type, which is widely recognized by global customers.
Compared with ordinary optical shafts and single-step shafts on the market, our double-step shafts have four irreplaceable design advantages, which solve the inherent defects of traditional shafts from the structure.
1. Precise Step Positioning: The step end face is processed by high-precision surface grinding, parts are positioned accurately when leaning against it, no need to repeatedly adjust gasket thickness, and no need to worry about positioning movement during operation.
2. Scientific Load Distribution: The large diameter section bears torque, and the small diameter section is equipped with seals. Different shaft diameters match corresponding load levels, with uniform stress distribution, effectively improving torsional strength and bending strength, and reducing fatigue fracture risk under long-term high load.
3. Natural Spigot Self-alignment: The spigot formed by the step outer circle and end face makes bearings and end covers automatically coaxial when sleeved in, no need for dial indicator alignment. Even new workers can achieve reliable assembly accuracy, avoiding problems of bore sweeping and abnormal noise caused by misalignment.
4. Integrated Sealing Structure: The sealing groove is directly made at the step, and the sealing ring will not shift against the step side. The sealing effect is more reliable than the sealing groove separately opened on the optical shaft, effectively reducing oil leakage and dust ingress problems, and prolonging bearing service life.
These unique design features make Double Step Type Motor Shaft perform better than traditional shaft products in high-load, high-reliability scenarios.
All parameters come from actual mass production test data, no false marking. Conventional specifications strictly implement the following accuracy standards, and special requirements can be customized:
| Parameter Item | Specification Range | Accuracy Standard |
|---|---|---|
| Single step width | 3~8 mm | Width tolerance ±0.02mm |
| Shaft straightness | - | ≤0.03 mm / 100 mm |
| Journal radial runout | - | ≤0.02 mm |
| Step end face roughness | - | Ra ≤ 1.6~3.2 μm |
| Step transition fillet | R0.5~R2 mm | Customizable |
| Shaft outer diameter range | φ5~φ60 mm | Tolerance up to h6 level |
| Common materials | - | 45# steel, 40Cr, bearing steel, stainless steel |
| Heat treatment hardness | - | HRC25-60 customizable |
Note: All accuracy standards are stably achievable in mass production, not ideal laboratory data. Batch supply can guarantee compliance with the above parameter requirements.
This is the value most feedback by customers after use - no more worrying about shaft problems, worry-free from assembly to later maintenance, solving many pain points for procurement and production.
1. Lower Assembly Threshold: Workers can assemble according to the steps, no need for repeated dial indicator alignment, no need to grind gaskets to adjust clearance, greatly reducing the dependence on experienced workers, and avoiding defective products caused by manual operation errors.
2. Reduce Debugging Time: Parts are automatically positioned by the step structure, the assembly clearance meets requirements after installation, reducing the situation of unable to rotate or abnormal noise requiring disassembly and reassembly, and shortening factory debugging time.
3. Reduce Operation Failures: Reasonable stress distribution makes shaft breakage less likely, reliable sealing makes oil leakage and dust ingress less likely. After-sales repair reports are reduced after equipment is sold, saving after-sales service cost.
4. Convenient Maintenance and Replacement: Standard parts have high consistency. For after-sales shaft replacement, just take one and install it directly, no need for custom manufacturing or secondary processing, and spare parts inventory management is simpler.
5. Simplify Inventory Management: One shaft integrates multiple functions of positioning, sealing and load bearing, reducing the types of spare parts such as positioning sleeves and retaining rings, and reducing inventory capital occupation.
Many customers feedback that after using Double Step Type Motor Shaft, the workshop assembly efficiency is significantly improved, and after-sales problems are reduced. This is the actual value that good products bring to customers.
We understand that different customers have different equipment designs, and provide whole-process customization support from design to mass production, we support small batch customization for R&D projects.
1. Full Size Customization: Step quantity, each section diameter, step width, transition fillet, keyway, thread, hole position are all processed according to drawings, supporting multi-step complex shaft customization.
2. Structure Customization: Various standard sealing grooves, circlip grooves, positioning pin holes can be processed at the steps, and special-shaped spigots and positioning surfaces can also be customized to meet special installation needs.
3. Process Customization: Recommend appropriate materials and heat treatment processes according to load size, and surface treatments such as blackening, nickel plating, zinc plating, polishing can be done to adapt to different working conditions.
4. Design Support: The engineering team provides free manufacturability review, helps customers optimize shaft system design, reduces processing costs and shortens delivery time without affecting performance.
5. Sample Service: Conventional samples are delivered in 7-10 days, complex samples are delivered within 15 days, and the inspection report of samples is sent with goods, and mass production starts after sample confirmation.
Focusing on high-precision motor shafts for more than ten years, Guanshuo has become a long-term supplier of many equipment manufacturers, relying on professional equipment, strict quality control and stable delivery.

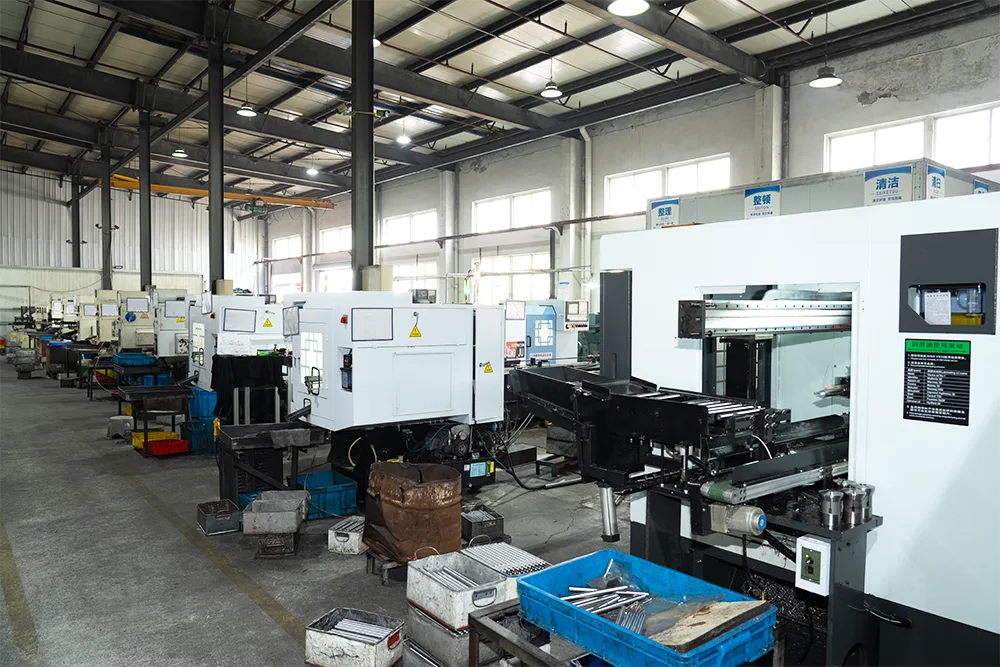

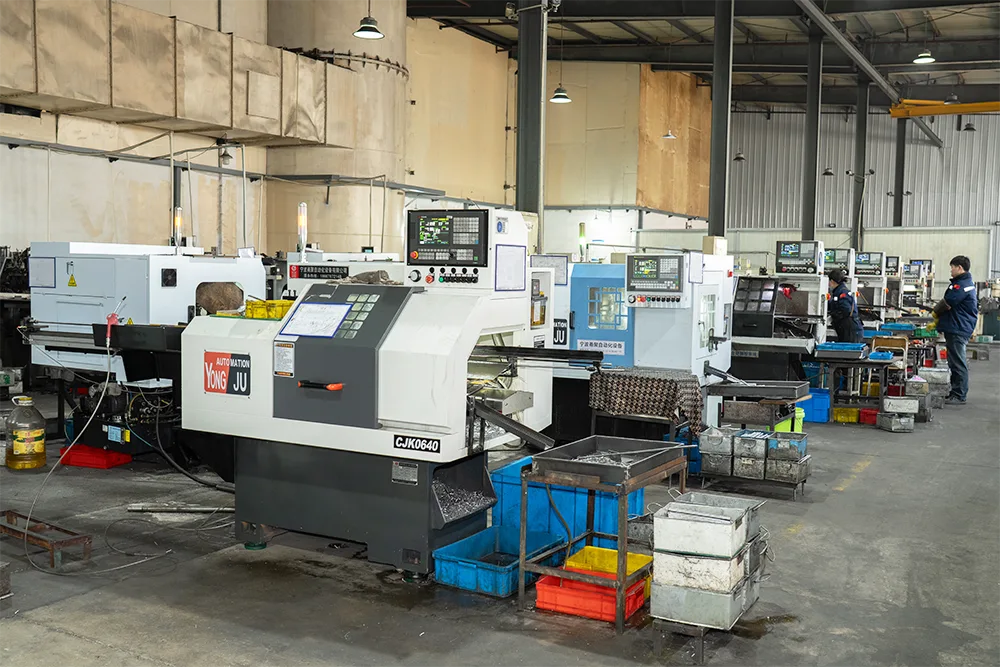

1. Professional Processing Equipment: We are equipped with 26 CNC cylindrical grinders, 6 high-precision centerless grinders, 3 turning-milling composite machining centers and other special shaft processing equipment, which is different from miscellaneous parts factories, and can guarantee the precision and stability of shaft processing.

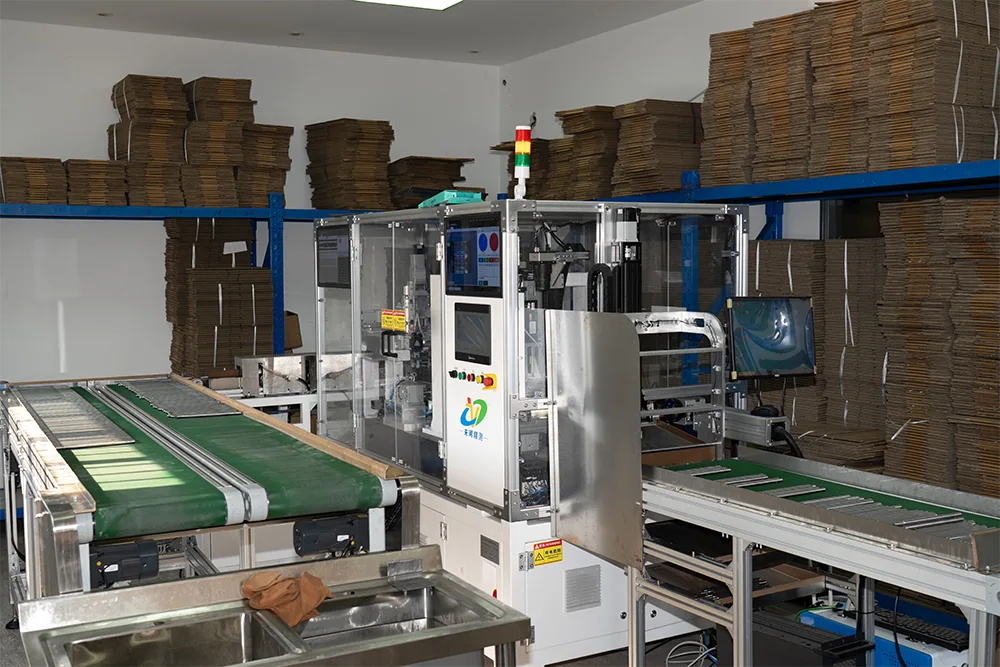

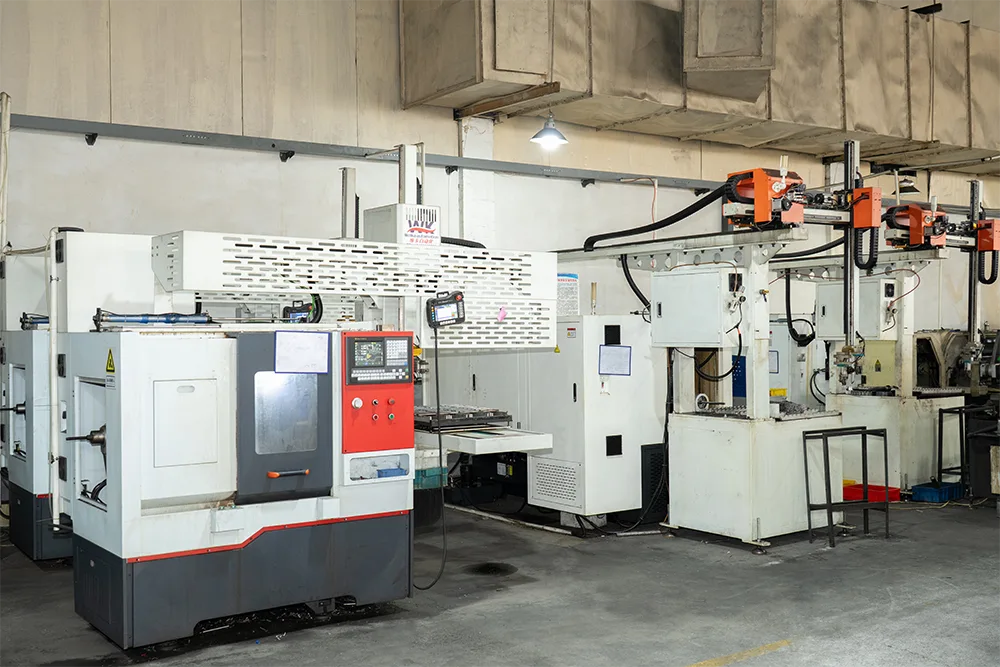

2. Strict Quality Control: Each shaft undergoes multiple inspection processes, key dimensions are 100% inspected, equipped with automatic optical inspection equipment, hardness testers, two-dimensional projectors, surface roughness meters and other testing equipment, to ensure that the factory pass rate meets industry high standards.
3. Rich Industry Experience: We have been engaged in motor shaft manufacturing for more than ten years, with 11 utility model patents related to shaft structure, familiar with common failure problems of various shafts, and can help customers avoid design risks in advance.
4. Fast Response Service: Sales and technical teams respond quickly, quotations are provided within 24 hours after inquiry, and solutions are given within 48 hours for problems, avoiding delaying customer project progress.
5. Stable Production Capacity: We have more than 60 sets of CNC processing equipment, with sufficient production capacity to guarantee delivery even in peak season, and will not delay customer production plans due to order surge.
We not only provide shafts, but also provide customers with stable and reliable supply chain guarantee, so that customers can focus on their core product R&D and production.
We standardize the whole process from packaging to after-sales, to ensure perfect delivery of products and worry-free use.
1. Timely Delivery: Conventional specifications have safety stock, shipped within 3 days after payment; customized products are delivered according to the agreed delivery time, support customer designated freight forwarders, and can provide conventional international trade terms.
2.Warranty Policy: All products provide 24-month warranty period. Any quality problem under normal use will be replaced free of charge.
3.Technical Support: Free installation guidance is provided. If there are assembly problems, you can contact the technical team for video guidance at any time, and on-site technical support can be provided when necessary.
4.After-sales Response: We respond quickly after receiving customer feedback, and give solutions within 48 hours. Domestic customers can arrange on-site service, and overseas customers are provided with video + spare parts support.
A1: Although the single shaft processing cost increases slightly, it saves the cost of positioning parts and reduces assembly labor hours, and the comprehensive cost is more advantageous.
A2: Yes, we adopt forming grinding process, the step dimension tolerance of batch products is stable, which can meet the requirements of mass assembly.
A3: No, the fillet size is designed in strict accordance with bearing installation chamfer standards, which not only avoids stress concentration, but also ensures that the bearing end face is completely attached to the step face.
A4: Yes, we can process standard O-ring grooves and skeleton oil seal grooves according to customer needs, and the groove accuracy meets the installation requirements of conventional sealing parts.
A5: Yes, we support small batch orders for R&D projects, and maintain the same quality standards as mass production, supporting customers from R&D to mass production.
A6: Material report, heat treatment report, dimension inspection report, certificate of origin and other conventional export documents can be provided to meet customs clearance requirements.
We welcome customers from all over the world to inquire and negotiate at any time. Whether you need standard Double Step Type Motor Shaft selection or customized development, our professional team will provide you with fast and professional services.
1. Company Name: Ningbo Guanshuo Precision Hardware Co., Ltd.
2. Factory Address: Qingqing Road 268-1, Jiaochuan Sub-district, Zhenhai District, Ningbo City, Zhejiang Province, China
3. Hotline: +86-15990709753
We promise to reply to all inquiries within 24 hours, provide free sample testing, professional selection support, and factory inspection reception. We look forward to establishing long-term and stable cooperative relations with you and providing reliable precision transmission solutions for your equipment.
